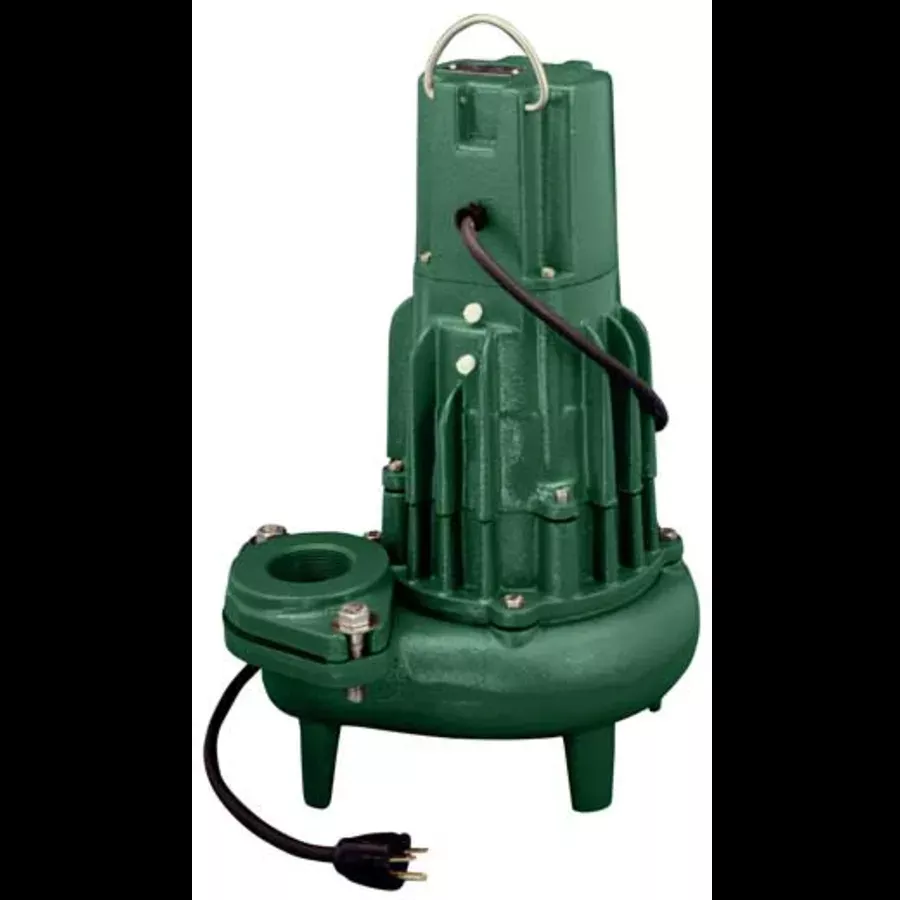

1/2 HP 230V Automatic Submersible Sewage Pump
Zoeller 282-0003 Features:
Non-clogging vortex impeller design
Float operated, submersible (NEMA 6) 2-pole switch
Durable cast iron construction
Stainless steel screws, bolts, handle, guard, arm, and seal assembly
Carbon and ceramic rotary face seal with stainless steel wetted parts
120″ UL listed 3-wire neoprene cord and plug
Upper sleeve bearing and lower ball bearings running in a oil bath
Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
Passes 2″ spherical solids
Corrosion resistant powder coated epoxy finish
Zoeller 282-0003 Specifications:
Height: 18.8125″
Width: 13.5625″
Category: Sewage Pumps
Connection Size: 2″ NPT
Flow Rate: 127 gpm
1/2 HP motor
Maximum Head Height: 26′
Voltage: 230V
Weight: 83 lbs.
Additional Zoeller Links
View the Manufacturer Warranty
Dimensions and Measurements
| Height | 18.813 in. |
| Width | 13.56 in. |
| Product Weight | 83 lbs. |
| Flow Rate (GPM) | 127 |
| Water Connection | 2″ |
| Maximum Head Height | 26 in. |
Warranty and Product Information
| Certifications | UL |
Electrical and Operational Information
| Voltage | 230 |
| Horsepower | .5 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 130 °F |
| Motor RPM | 1750 |
Characteristics and Features
| Water Connection Type | NPT |
| Impeller Material | Cast Iron |
| Material Casing | Iron |
| Material Housing | Iron |
