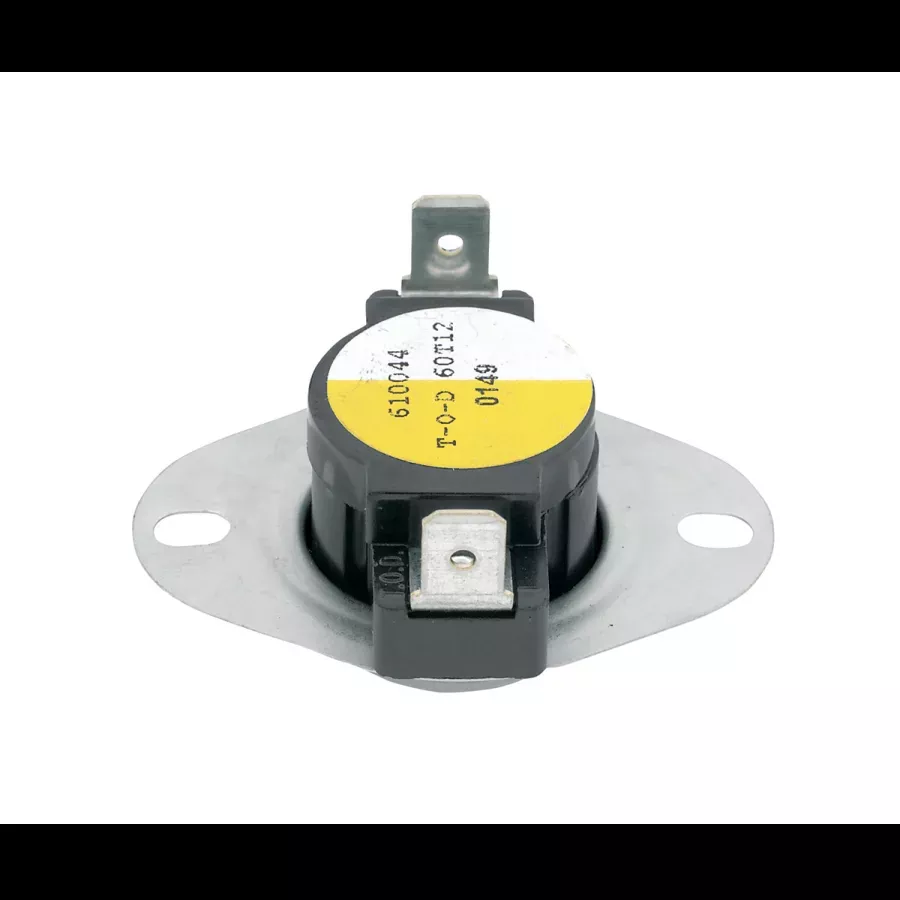

Snap Disc Fan Control
Designed for quick on the job replacement, the 3F01-180 snap disc fan control offers precise fan regulation.
Features:
Fan Control
Close on Rise
Cut-In: 180°F
Cut-Out: 160°F
Designed for quick on-job replacement
Easy to remember type numbers: “L” for Limit, “F” for Fan
Mounting holes match standard ¾” snap discs
Tab-to-screw terminal adapters furnished
Motor:
10 A @ 120 VAC
5 A @ 240 VAC
Pilot Duty Rating:
125 VA @ 120 VAC
125 VA @ 240 VAC
125 VA @ 277 VAC
Resistive (Non-Inductive): 25.0 A @ 120 VAC, 25.0 A @ 240 VAC, 21.6 A @ 277 VAC
White-Rodgers, a recognized leader in climate control solutions, celebrates 75 years of business in 2012. Experience, integrity and customer service are still the tenets that mark this great company. From the humble beginnings of two engineers collaborating to solve the control problem of the day, to being the answer for your climate control needs, White-Rodgers is the respected name among industry professionals and home owners alike.
Additional White-Rodgers Links
View the Manufacturer Warranty
Browse all White-Rodgers Products
White-Rodgers Snap Disc Fan and Limit Controls Collection
Electrical and Operational Information
| Voltage | 120, 240, 277 |
| Amperage | 10 |
| Temperature (Max) | 180 °F |
| Temperature (Min) | 160 °F |
Characteristics and Features
| Switch Type | Close on Rise |
Warranty and Product Information
| Application | Fan Control |
