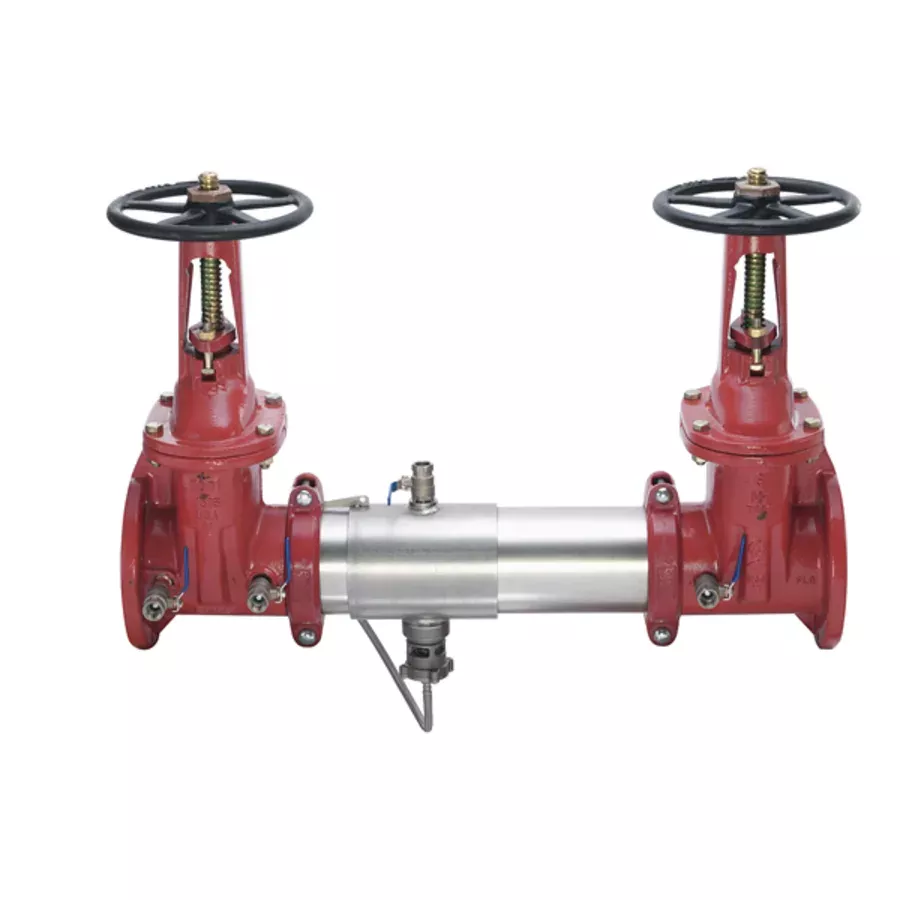

2-1/2″ Reduced Pressure Zone Assembly
Series 957, 957N, 957Z Reduced Pressure Zone Assemblies provide protection to the potable water system from contamination in accordance with national plumbing codes. Series 957, 957N, 957Z are normally used in health hazard applications for protection against back siphonage or back pressure.
Watts 0111602 Features:
Replaceable check disc rubber
Extremely compact design
70% Lighter than traditional designs
304 (Schedule 40) stainless steel housing and sleeve
Groove fittings allow integral pipeline adjustment
Patented torsion spring checks provide lowest pressure loss
Unmatched ease of serviceability
Bottom mounted cast stainless steel relief valve
Features non-rising stem and resilient seated gate valves
Watts 0111602 Specifications:
Height: 15-7/8″
Width: 30-1/2″
Connection Size: 2-1/2″
Weight: 200 lbs.
Additional Watts Links
Browse all Watts Products
Dimensions and Measurements
| Height | 15.875 in. |
| Width | 30.5 in. |
| Product Weight | 200 lbs. |
| Water Connection | 2-1/2″ |
Warranty and Product Information
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
