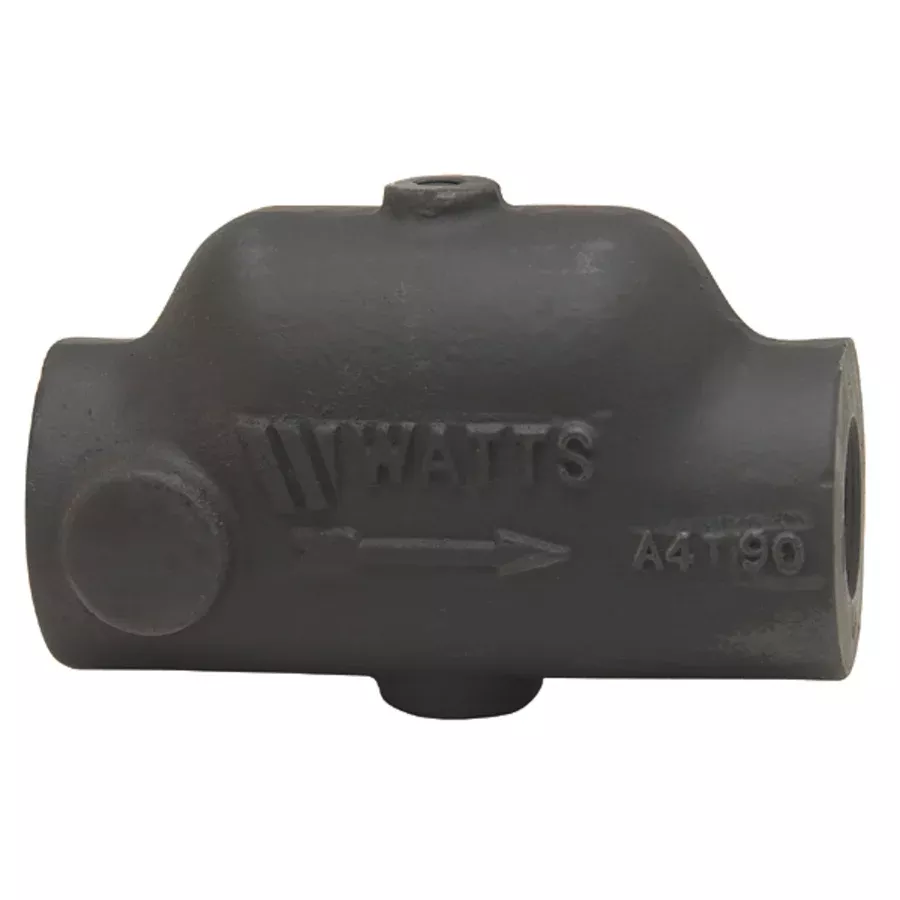

1-1/4″ Air Separator
Series AS Air Separator is designed for efficient separation of air from water in Hydronic Heating Systems. Watts air separators have heavy cast iron construction. They have tapings for the installation of an expansion tank and air vent. Entrapped air in the hot water heating system piping is dispersed by the internal agitator of the air separator as the water is recalculated within the heating system piping. This provides quiet efficient operation of the hot water heating system radiation.
Watts 0858536 Features:
1/2″ tapings on each side for fill valve piping
Heavy cast iron construction
Efficient separation of air
Furnished with tapings for expansion tank and air vent
Watts 0858536 Specifications:
Height: 4″
Length: 6-1/4″
Connection Size: 1-1/4″
Connection Type: NPT
Weight: 4.584 lbs.
Additional Watts Links
Browse all Watts Products
Dimensions and Measurements
| Height | 4 in. |
| Product Weight | 4.58 lbs. |
| Length | 6.25 in. |
| Water Connection | 1-1/4″ |
Characteristics and Features
| Water Connection Type | NPT |
Warranty and Product Information
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
