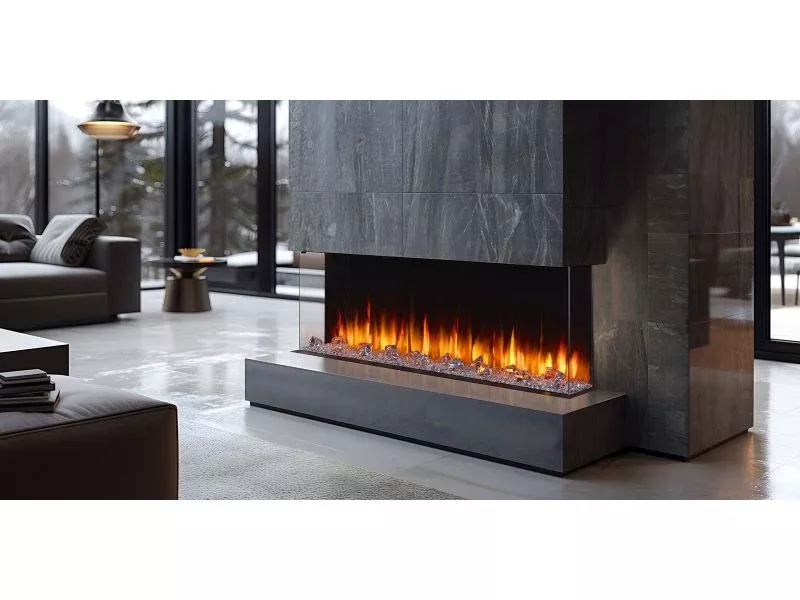

The SimpliFire Triton 65 is a built-in linear electric fireplace with a striking 20-inch-tall viewing area, designed so finishing materials come right to the edge of the opening for a seamless architectural look. It installs single-sided, two-sided corner (left or right), or three-sided bay, and multiple units can be linked together for a continuous run of flame across a feature wall.
Features
- Limitless length – link multiple Triton units together for unlimited width and extra warmth.
- Adapts to your space – one-sided, two-sided corner, or three-sided bay configurations from a single unit.
- Impressive focal point – 20″ high glass with hidden vents and no mesh screen for a clean built-in finish.
- Smart control – Wi-Fi control of thermostat, lighting and on/off via the SmartLife app, plus an included multi-function remote.
- Adjustable ambiance – nine flame effects and over 100 flame and ember bed color combinations with adjustable brightness.
- Authentic sound – two crackling fire sound effects with adjustable volume, or silent operation.
- Year-round use – adjustable heat up to 10,000 BTUs with a no-heat mode and heater shut-off switch.
Specifications
| Model | SF-TR65 |
| Collection | Triton |
| Overall dimensions | 65-5/16″ W x 12-7/16″ D x 26-11/16″ H |
| Viewing area | 65-5/16″ W x 20″ H |
| Framing required | 65-9/16″ W x 12-15/16″ D x 27-3/16″ H |
| Heat output | 5,000 BTU at 120V / up to 10,000 BTU at 240V |
| Heating range | Up to 400 sq. ft. |
| Electrical | 120V, 1,400W, 11.6 amps (15 amp circuit) or 240V, 2,800W (20 amp circuit) |
| Wiring | Hardwired to electrical service |
| Installation | Recessed into rough framing behind finishing materials; 1/2″ finishing stop |
| Configurations | Single-sided, two-sided corner (left or right), three-sided bay |
| Controls | Hidden controls on unit, multi-function remote, Wi-Fi phone app |
| Media included | XL Timber Logs, black glass embers, clear crystal media |
| Certification | UL listed |
| Usage | Indoor use only |
| Warranty | 2 years |
What’s Included
- Triton 65 electric firebox
- XL Timber Log set, black glass embers and clear crystal media
- 2″ and 1/2″ finishing trim options
- Multi-function remote control
- Installation manual and hardware
Documents
Installation Manual
Service Manual
Warranty
SimpliFire warrants the Triton and its component parts to be free from defects in materials and workmanship for two years from the date of purchase. See the manufacturer’s published warranty for full terms and coverage.
