Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

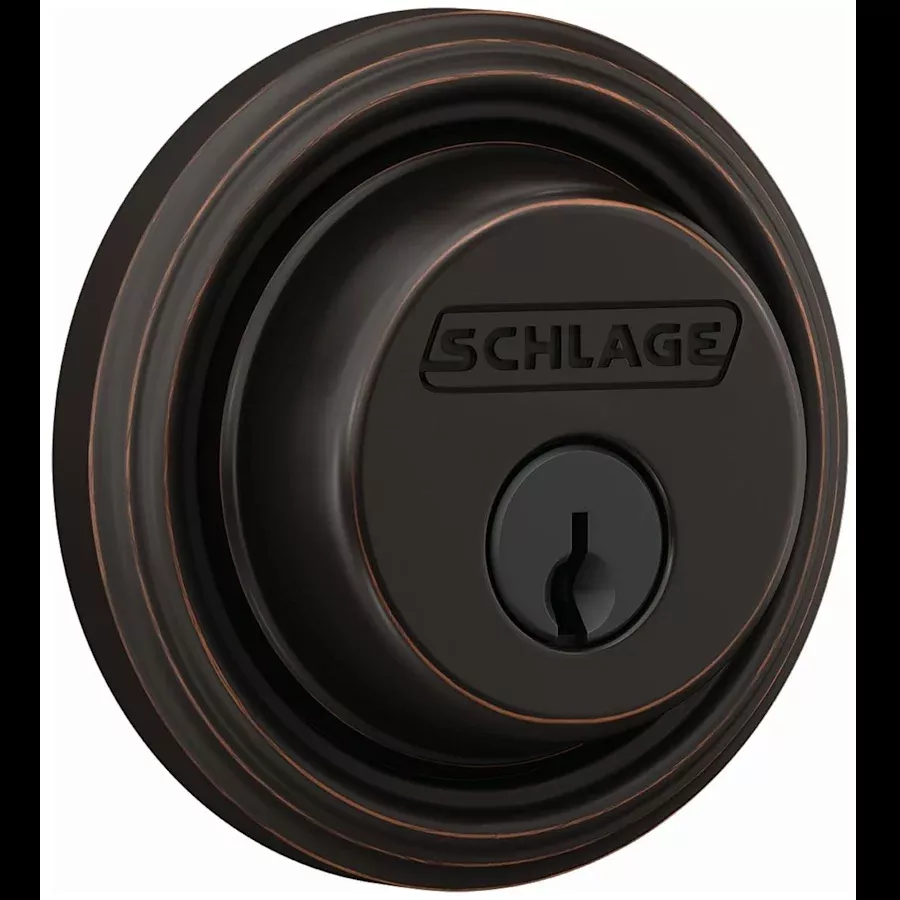

Single Cylinder: Single cylinder deadbolts are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
BHMA security rated
Constructed of high quality materials for lasting durability
Installs easily with all necessary mounting hardware included
Covered by Schlage’s limited lifetime manufacturer warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ – 1-3/4″
Handing: Reversible Left or Right
Interior Height: 2-3/4″
Interior Width: 2-3/4″
Interior Projection: 7/16″
Exterior Height: 2-3/4″
Exterior Width: 2-3/4″
Exterior Projection: 7/16″
Latch Faceplate: Round Corner
Cylinder: 5 Pin C Keyway
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Custom Collection
Dimensions and Measurements
| Product Weight | 1.16 lbs. |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Edge Bore | 1″ |
| Interior Height | 2.73 in. |
| Interior Width | 2.73 in. |
| Exterior Height | 2.73 in. |
| Exterior Projection | 0.41 in. |
| Exterior Width | 2.73 in. |
| Interior Projection | 0.41 in. |
Characteristics and Features
| Material | Zinc |
| Thermostat | Transitional |
| Handshower | Left, Reversible, Right |
| Function | Keyed Entry |
| Cylinder Type | Single Cylinder |
| Concealed Screws | No |
| Keyway | C |
| Latch Faceplate | Round Corner |
| Rosette Shape | Round |
| Cylinder | 5 Pin C |
| Trim Design | Indy |
| Number of Keys | 2 |
Warranty and Product Information
| Collection | Indy |
| Approved for Commercial Use | No |
| Certifications | ANSI |
| Country Of Origin | Mexico |
| Fire Rated | No |
| Manufacturer Warranty | Limited Lifetime |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 1 |
| ADA | Yes |
| Series | B Series |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
