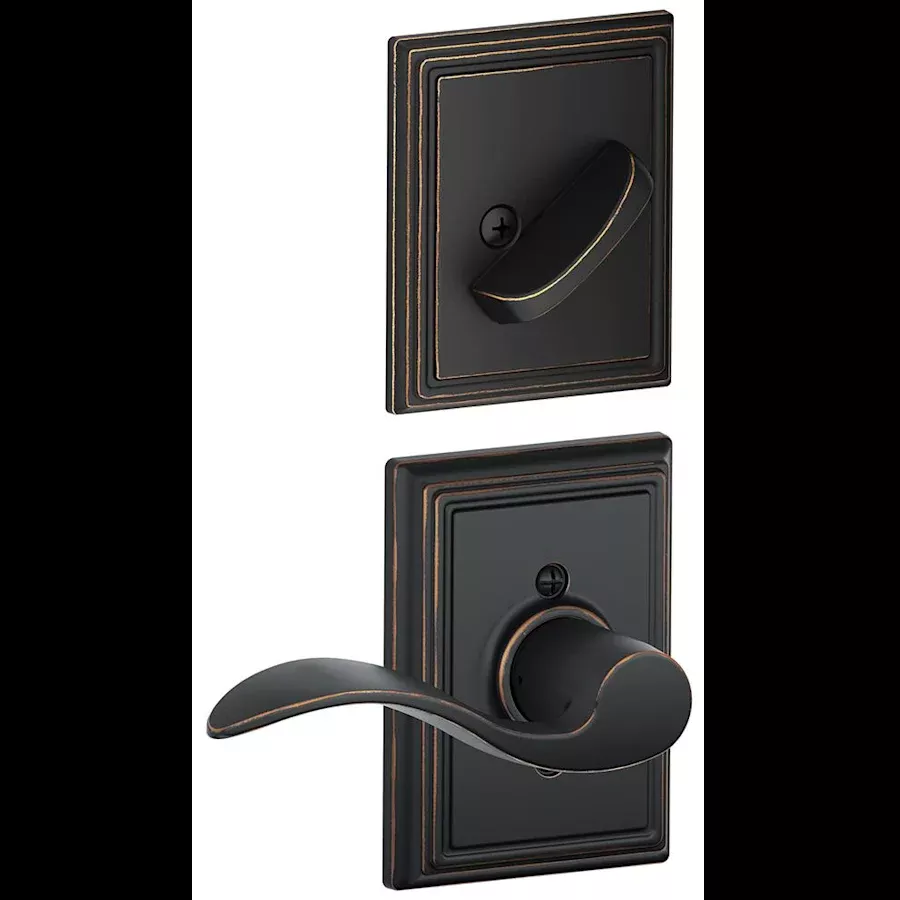

Interior Pack (Single Cylinder) Function: Schlage single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation.
Right Handed: Handing is determined by standing on the outside of a room, facing the door, and noting on which side the door hinges are located. This handle is right handed, and so when standing outside of the room and facing the door the hinges will be on your right.
Product Features:
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time)
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take just a matter of minutes.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Specifications:
Backset: 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handle Design: Accent
Trim Design: Addison
Handing: Right
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin Schlage C
Product Variations:
F59-ACC-ADD-LH: Left Handed Keyed Entry Single Cylinder Interior Pack
F59-ACC-ADD-RH (This Model): Right Handed Keyed Entry Single Cylinder Interior Pack
F94-ACC-ADD-LH: Left Handed Dummy Interior Pack
F94-ACC-ADD-RH: Right Handed Dummy Interior Pack
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Characteristics and Features
| Thermostat | Transitional |
| Handle Material | Metal |
| Handle Style | Lever |
| Handshower | Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Style | Contemporary / Modern |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Panic Proof | No |
| Shape | Flat, Wave |
| Trim Design | Addison |
| Number of Keys | 2 |
| Handle Design | Accent |
Warranty and Product Information
| Collection | Accent, Addison |
| Approved for Commercial Use | No |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
Dimensions and Measurements
| Product Weight | 1.5 lbs. |
| Door Thickness | 1-3/4″, 1-5/8″, 1-7/8″, 2″ |
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Edge Bore | 1″ |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8″ |
| Handle Projection | 2.7188 in. |
| Trim Height | 4 in. |
| Trim Width | 2.75 in. |
| Handle Length | 4.1563 in. |
| Color | Aged Bronze, Antique Brass, Antique Pewter, Bright Chrome, Distressed Nickel, Matte Black, Polished Brass, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
