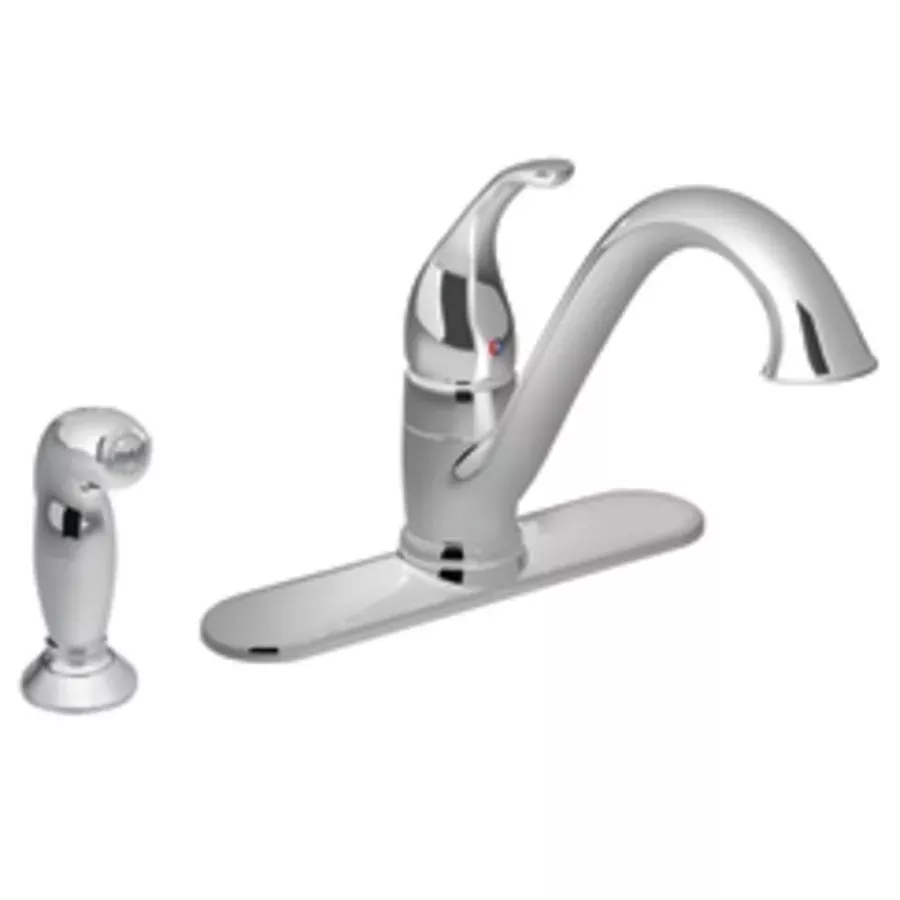

Product Features:
Faucet body constructed of brass to ensure durability and dependability
Covered under Moen’s limited lifetime faucet warranty
Finishes resist corrosion and tarnishing through everyday use – finish covered under lifetime warranty
The Camerist line of products offers superior styling and a clean simple design to complement any décor
Moen sets the standard for exceptional beauty and innovative reliable design
Single handle operation for ease of use
Spout swivels providing greater access to more areas of the sink
An included side sprayer lends a helping hand for a variety of kitchen tasks
High-arch gooseneck spout design provides optimal room under the faucet for any size task
Includes optional escutcheon (cover plate) – for sinks with 3 faucet holes
ADA compliant
Low lead compliant – faucet meets federal and state regulations for lead content
Product Technologies / Benefits:
Spot Resist™ Finish: Spot Resist™ stainless finish resists fingerprints and water spots for a cleaner looking kitchen
Duralast™ Cartridge: An exciting new proprietary cartridge design that offers a smooth feel and reliable operation of a new faucet from the first use to the last use. This new cartridge combines innovative engineering and the highest quality materials. It surpasses conventional durability standards to withstand the toughest conditions, including hard water.
Product Specifications:
Overall Height: 8-1/2″ (measured from counter top to highest part of faucet)
Spout Height: 6-1/8″ (measured from counter top to spout outlet)
Spout Reach: 9-1/4″ (measured from center of faucet base to center of spout outlet)
Number of Holes Required for Installation: 2
Flow Rate: 1.5 GPM (5.7 L/min)
Max Deck Thickness: 1-1/8″
Designed for use with standard U.S. plumbing connections
All hardware needed for mounting is included with faucet
Variations:
7840: This model
7545: This model without side spray + pullout spray head
7825: This model without side spray
7835: This model with attached side spray
Additional Moen Links
View the Manufacturer Warranty
Browse all Moen Products
Moen Camerist Collection
Dimensions and Measurements
| Height | 1.125 in. |
| Product Weight | 6.5 lbs. |
| Faucet Centers | 0 in. |
| Max Deck Thickness | 1.125 in. |
| Faucet Hole Size | 1.25 in. |
| Flow Rate (GPM) | 1.5 |
| Spout Height | 6.125 in. |
| Spout Reach | 9.25 in. |
| Water Connection | 3/8″ |
| Flow Rate/GPM (at Max PSI) | 2.20 |
| Sink Height | 4.5 in. |
Characteristics and Features
| Insulation Type | Deck Mounted |
| Material | Metal |
| Thermostat | Transitional |
| Faucet Holes | 2 |
| Faucet Type | Kitchen Faucet |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Pre Rinse | No |
| Pullout Spray | No |
| Spout Style | Low Arc |
| Spout Type | Swivel |
| Valve Type | Ceramic Disc |
| Water Connection Type | Compression |
| Handle Material | Metal |
| Quick Connect Supply Lines | Yes |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | Camerist |
| Manufacturer Warranty | 5 Year Limited Commercial, Limited Lifetime Residential |
| ADA | Yes |
| CA Drought Compliant | Yes |
| ASSE Code | A112.18.1 |
| Certifications | ASME, NSF, UPC, CSA |
| CSA Code | B125.1 |
| Eco Friendly | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Low Lead Compliant | Yes |
Included Components
| Escutcheon Included | Yes |
| Valve Included | Yes |
| Filtering | No |
| Handshower Included | Yes |
| Sidespray | Yes |
| Soap Dispenser Included | No |
| Color | Chrome, Oil Rubbed Bronze, Spot Resist Stainless, Stainless |
| Color Tone | Bronze Tones, Silver Tones, Stainless Steel |
