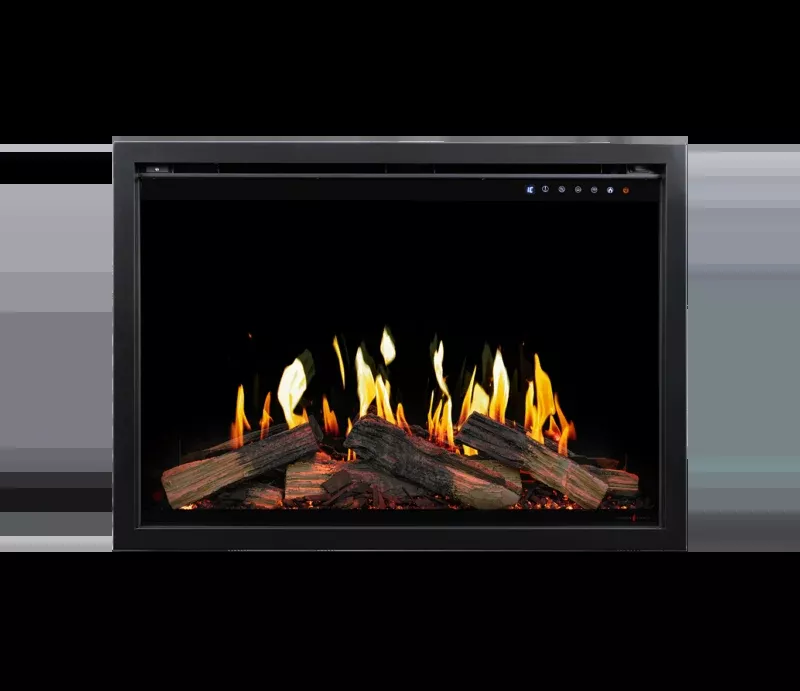

The Orion V2 Traditional puts the second-generation LCD flame into a classic firebox shape — the one Orion that will retrofit straight into an existing wood-burning masonry fireplace. Sharper contrast, deeper blacks and adaptive brightness make the flame read as real from across the room, and with a real split-wood log set over an active ember bed, the illusion holds up close too.
- Retrofits an existing masonry firebox — or installs built-in / recessed in new framing.
- 24 multi-dimensional flame options — wood-burning, gas and hybrid patterns across six colours, three-speed control, ten-colour ember bed with Fade Mode.
- Next-generation LCD with adaptive brightness, mirrored background and tinted front glass to cut glare.
- Authentic life-like logs crafted from real split wood over an active ember bed.
- Premium audio — custom speakers, Bluetooth streaming and three crackling soundscapes.
- Smart PTC ceramic heat, independent of the flame, so you can run the fire year-round.
- Ever-expanding flame library delivered over the air through the Modern Flames+ app.
Choosing Your Configuration
Size is required. The TruWood Premium Timber Kit is optional — leave it set to “Without” for the fireplace as supplied. TruWood swaps the standard log set for real split-wood timbers and is matched to your size automatically.
Fitting into an existing opening that doesn’t match? Optional surrounds are available for the 26″, 30″ and 36″ in small and large sizes — see the linked surround products below. The 42″ and 54″ do not have a surround option.
Indoor use only. Unlike the Orion V2 Slim and Multi, the Traditional is not approved for outdoor installation.
Specifications
| 26″ (OR26-TRAD-V2) | 25″W x 19-5/8″H x 9-3/8″D · viewing 22-7/16″ x 17-1/16″ · 59 lbs · 120V, 1,465 W, 5,000 BTU, up to 400 sq ft |
| 30″ (OR30-TRAD-V2) | 30-1/2″W x 19-5/8″H x 9-3/8″D · viewing 27-5/8″ x 17-1/16″ · 66 lbs · 120V, 1,465 W, 5,000 BTU, up to 400 sq ft |
| 36″ (OR36-TRAD-V2) | 35″W x 24-13/16″H x 9-3/8″D · viewing 32-1/2″ x 22-3/16″ · 92 lbs · 120/240V, 1,465/2,500 W, 5,000/8,300 BTU, 500–800 sq ft |
| 42″ (OR42-TRAD-V2) | 41″W x 27-13/16″H x 9-3/8″D · viewing 38-1/8″ x 25-3/16″ · 117 lbs · 120/240V, 1,465/2,500 W, 5,000/8,300 BTU, 500–800 sq ft |
| 54″ (OR54-TRAD-V2) | 53-3/8″W x 33-13/16″H x 9-3/8″D · viewing 50-3/8″ x 31-3/16″ · 170 lbs · 120/240V, 1,465/2,500 W, 5,000/8,300 BTU, 500–800 sq ft |
Framing / Rough Opening
| 26″ | 23″W x 18-3/4″H x 10-1/2″ minimum depth |
| 30″ | 28-1/4″W x 18-3/4″H x 10-1/2″ minimum depth |
| 36″ | 32-5/8″W x 23-7/8″H x 10-1/2″ minimum depth |
| 42″ | 38-3/4″W x 26-3/4″H x 10-1/2″ minimum depth |
| 54″ | 50-15/16″W x 32-3/4″H x 10-1/2″ minimum depth |
Confirm framing against the dimensional drawing for your exact size before building the opening.
| Circuit | 20A dedicated |
| Heater type | PTC ceramic, operates independently of the flame |
| Flame technology | Next-generation LCD, 24 flame options, 6 colours, 3 patterns |
| Ember bed | 10 colours plus Fade Mode |
| Audio | Custom speakers, Bluetooth streaming, 3 crackling soundscapes |
| Controls | Remote, on-unit touch panel, Modern Flames+ app, Alexa and Google Home |
| Timer | 8 hour |
| Indoor / outdoor | Indoor use only |
| Warranty | 5 years |
What’s Included
- Orion V2 Traditional fireplace
- Lit log set and black reflective crushed glass media
- Remote control
- Installation manual
- TruWood Premium Timber Kit if selected above
Spec Sheet | Installation Manual | Owner’s Manual
Dimensional drawings: 26″ · 30″ · 36″ · 42″ · 54″
Warranty: Modern Flames covers the Orion V2 Traditional with a 5-year warranty and dedicated factory support. This model is approved for indoor installation only.
