Product Overview

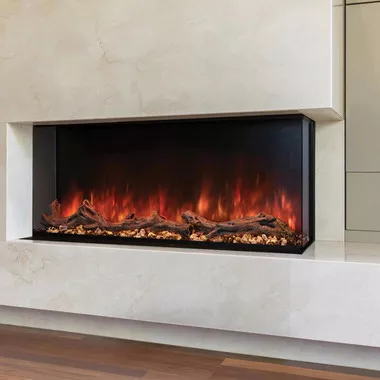

Modern Flames 44″ WIDE, LANDSCAPE PRO MULTI ELECTRIC FIREPLACE – 4″ OR 12″ WALL – (BUILT-IN/ CLEAN FACE) – LPM-4416
The 44 Inch Wide, Landscape Pro Multi-Sided Electric Fireplace, LPM-4416, has a very Versatile Design and a Powerful – 10K BTU Heater
With the most unique installation options suitable for any type of wall – allow this eye-catching electric fireplace to unlock your design vision for years to come.
• MULTI SIZES: 44” | 56” | 68” | 80” | 96”
• MULTI INSTALL DEPTHS: BUILT-IN CLEAN FACE – PARTIAL 2×4 RECESS – WALL MOUNT
• MULTI CONFIGURATIONS: SINGLE SIDED, LEFT CORNER, RIGHT CORNER & 3-SIDED (BAY)
• MULTI LIGHT CONTROL: FLAME COLOR, EMBER BED COLOR & DOWNLIGHTING COLOR
• MULTI LIGHT COLORS: FULL RGB COLOR SPECTRUM IN ALL LIGHTING FEATURES
STANDARD FEATURES
- Hybrid-FXTM Flame Technology
- Log Set – Highly Detailed Realism
- Flame, Ember Bed & Down lighting
- Controlled, Independently or Together
- 2 Different Ember Bed Stone Styles
- Full Flame Viewing Area
- Fully Finished Clean Face Installation
- Finish Trim Kit Included
- 5,000 BTU Variable Heater
- Variable Flames
- Remote Control
- Hidden Manual Controls
- Wi-Fi Controls with Modern Flames App
LIGHTING
• New Hybrid-FXTM Flame Technology
• Random, Beautiful Flame Image
• High Intensity RGB Flame Colors
• RGB Ember Bed Colors
• RGB Downlighting Colors
• Individually Controlled or Synchronized
• Full Color Spectrum in Each Light Feature
• Active Ember Bed
HEAT
• Up To 10,000 BTU Heat Output
•Energy Efficient Electric Fireplace
• High Efficiency PTC Ceramic Heater
CONTROLS & FUNCTIONS
• Basic Features Manual Controls
• Full Feature Remote Control
- RGB Color Wheel
- Brightness Slide Bar
• Full Feature Modern Flames App
| Model | Viewing Area | Firebox Dimensions | Framing Dimensions |
| LPM-4416 | 42” W x 15 ¹⁄2” H | 44 ³⁄32” W x 24 ⁷⁄8” H x 11 ¹⁄2” D |
44 ³⁄8” W x 25 ¹⁄4” H x 12” D |
| LPM-5616 | 54” W x 15 ¹⁄2” H | 56 ³⁄32” W x 24 ⁷⁄8” H x 11 ¹⁄2” D |
56 ³⁄8” W x 25 ¹⁄4” H x 12” D |
| LPM-5616 | 66” W x 15 ¹⁄2” H |
68 ³⁄32” W x 24 ⁷⁄8” H x 11 ¹⁄2” D |
68 ³⁄8” W x 25 ¹⁄4” H x 12” D |
| LPM-8016 | 78” W x 15 ¹⁄2” H |
80 ³⁄32” W x 24 ⁷⁄8” H x 11 ¹⁄2” D |
80 ³⁄8” W x 25 ¹⁄4” H x 12” D |
| LPM-9616 | 94″ W x 15 ¹⁄2″ H |
96 ³⁄32″ W x 24 ⁷⁄8″ H x 11 ¹⁄2″ D |
96 ³⁄8″ W x 25 ¹⁄4″ H x 12″ D |
INSTALLATION OPTIONS AND SIZES
Choice of sizes– 44″, 56″, 68″, 80″, & 96″
LPM-4416 – 44″ LANDSCAPE PRO MULTI-SIDED BUILT-IN (11.5″ DEEP – 44″ X 16″ VIEWING)
LPM-5616 – 56″ LANDSCAPE PRO MULTI-SIDED BUILT-IN (11.5″ DEEP – 56″ X 16″ VIEWING)
LPM-6816 – 68″ LANDSCAPE PRO MULTI-SIDED BUILT-IN (11.5″ DEEP – 68″ X 16″ VIEWING)
LPM-8016 – 80″ LANDSCAPE PRO MULTI-SIDED BUILT-IN (11.5″ DEEP -80″ X 16″ VIEWING)
LPM-9616 – 96″ LANDSCAPE PRO MULTI-SIDED BUILT-IN (11.5″ DEEP – 96″ X 16″ VIEWING)
MULTI INSTALLATIONS – OVER 12 DIFFERENT CONFIGURATIONS
| MULTI INSTALL DEPTHS: | MULTI CONFIGURATIONS: | |
| • BUILT-IN CLEAN FACE • PARTIAL 2×6 RECESS • WALL MOUNT |
• SINGLE SIDED • LEFT CORNER • RIGHT CORNER • 3-SIDED (BAY) |
• WALL MOUNT • BUILT-IN RECESSED (2X4) • FLOATING WALL CABINET • FLOOR CABINET |
FLAME DISPLAY
- Active Ember Bed Design
- Ultra-Natural Flame Appearance
- High Intensity RGB Flame Options
- Multi-Color Ember Bed & Downlighting Colors
- Full Color Spectrum in Each Light Feature
HEAT
- 5,000 or 10,000 BTU Heater
- Energy Efficient Electric Fireplace
- High Efficiency PTC Ceramic Heater
FUNCTION
- Full Feature Remote Control
- Basic Feature Manual Controls
- WiFi Controlled via Modern Flames App
- RGB Color Wheel & Brightness Slide Bar
LANDSCAPE PRO MULTI ACCESSORIES & UPGRADES
TH-WTC/LP – Thermostat & Full Wall Control
SPECS
44″ | PDF | View
56″ | PDF | View
68″ | PDF | View
80″ | PDF | View
96″ | PDF | View
RESOURCES
Installation Manual | PDF | View
Linear Brochure | PDF | View
Multiview Wifi Instructions For iPhone and IOS Users | PDF | View
Multiview Wifi Instructions For Android Users | PDF | View
Log Set Sizes | PDF | View
Installation Instructions for Recessed Suites | PDF | View
Installation Instructions for Wall Mount Suites | PDF | View
Pro Series Remote Guide | PDF | View
Wireless Wall Mounted Touch Control Instructions | PDF | View
