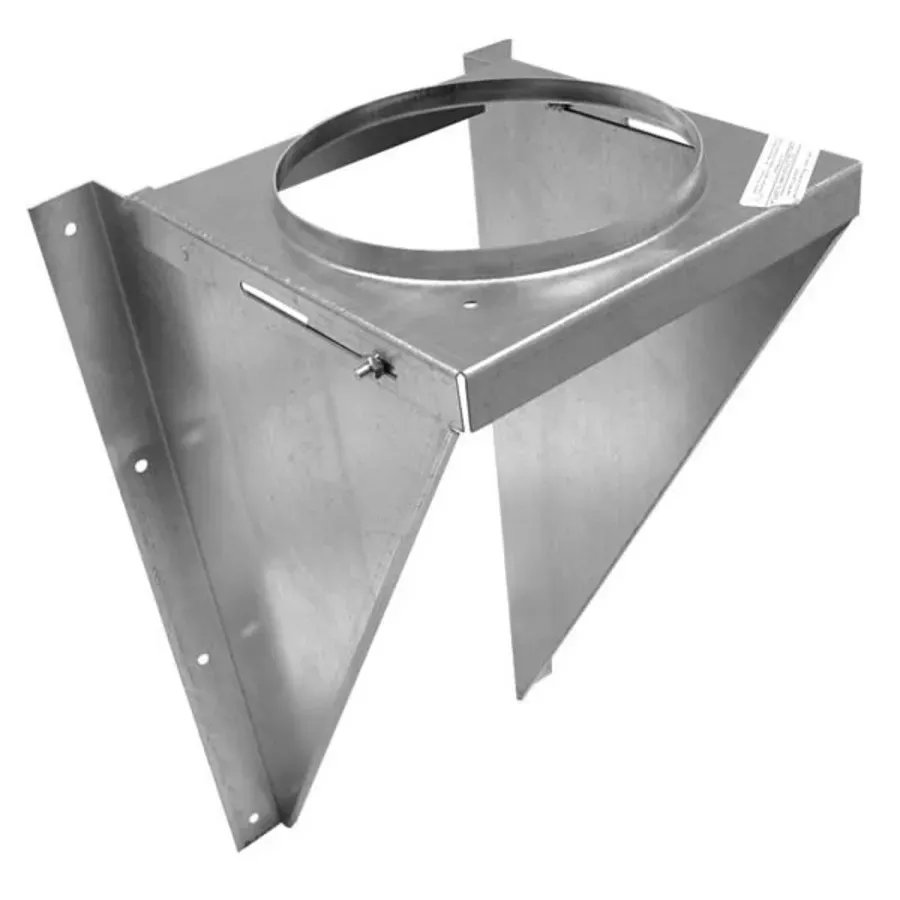

8″ Class A Chimney Pipe Wall Support Kit from Sure-Temp
The Type HT Wall Support Kit has been tested for use fully enclosed and has been designed to carry up to 60′ of height at 2″ from the wall. The Wall Support is intended for use with the Insulated Tee as an interior or exterior support where the chimney has a lateral connection. It is also useful where the pipe connection passes through a combustible interior or exterior wall. Braces may be fastened to the wall either above or below the plate for chimneys which penetrate through the wall.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
Allow an adjustment of 2″ to 6″ from a vertical wall
77951
Additional Metalbest Links
View the Manufacturer Warranty
Dimensions and Measurements
| Height | 21.875 in. |
| Width | 12.625 in. |
| Length | 14 in. |
| Pipe Inside Diameter | 8 in. |
Characteristics and Features
| Material | Stainless Steel |
| Configuration | Bracket |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
Warranty and Product Information
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
Electrical and Operational Information
| Fuel Type | Coal, Oil, Wood |
| Color | Galvanized |
| Color Tone | Neutrals |
