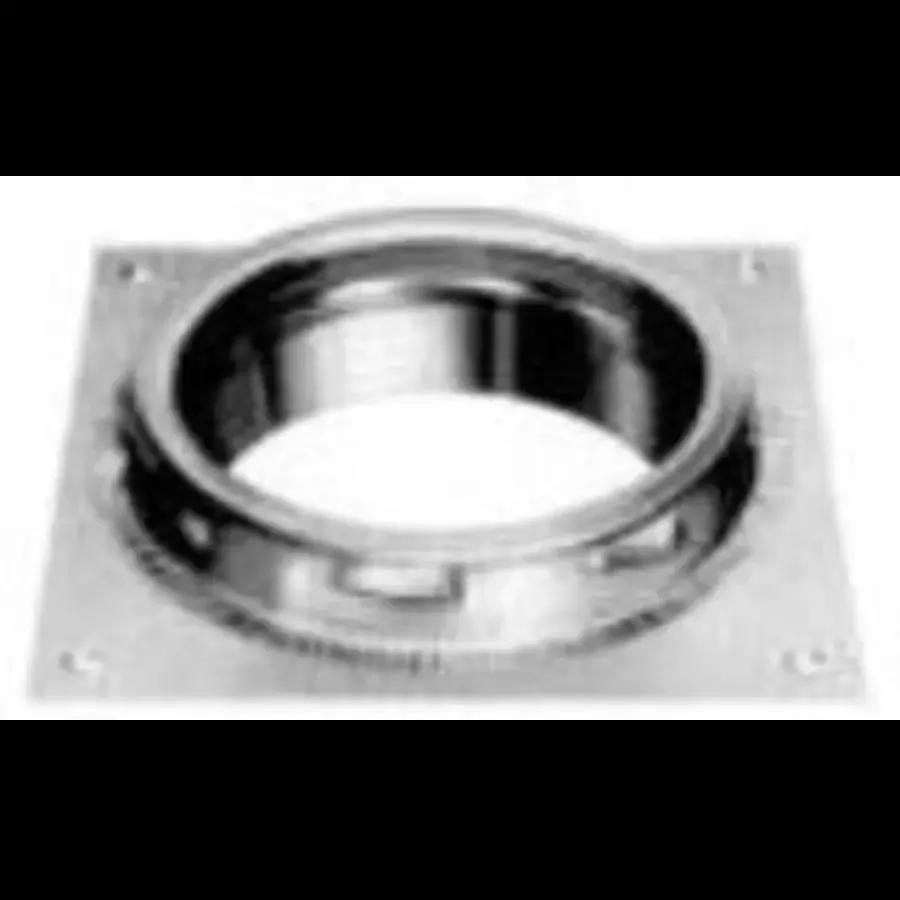

8″ Class A Chimney Pipe Anchor Plate from Sure-Temp
The Anchor Plate provides a secure attachment for the chimney to smoke chamber outlet on masonry fireplaces, reducing footing loads and speeding construction. Stainless steel and heavy gauge steel construction for long life. Retains chimney with a twist-lock connection.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103-HT
Warranty: Lifetime Limited Warranty
77945
Additional Metalbest Links
View the Manufacturer Warranty
Dimensions and Measurements
| Bar Length | 11.25 in. |
| Base Width | 11.25 in. |
| Height | 2 in. |
| Pipe Inside Diameter | 8 in. |
Characteristics and Features
| Material | Stainless Steel |
| Configuration | Anchor Plate |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
Warranty and Product Information
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
Electrical and Operational Information
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
