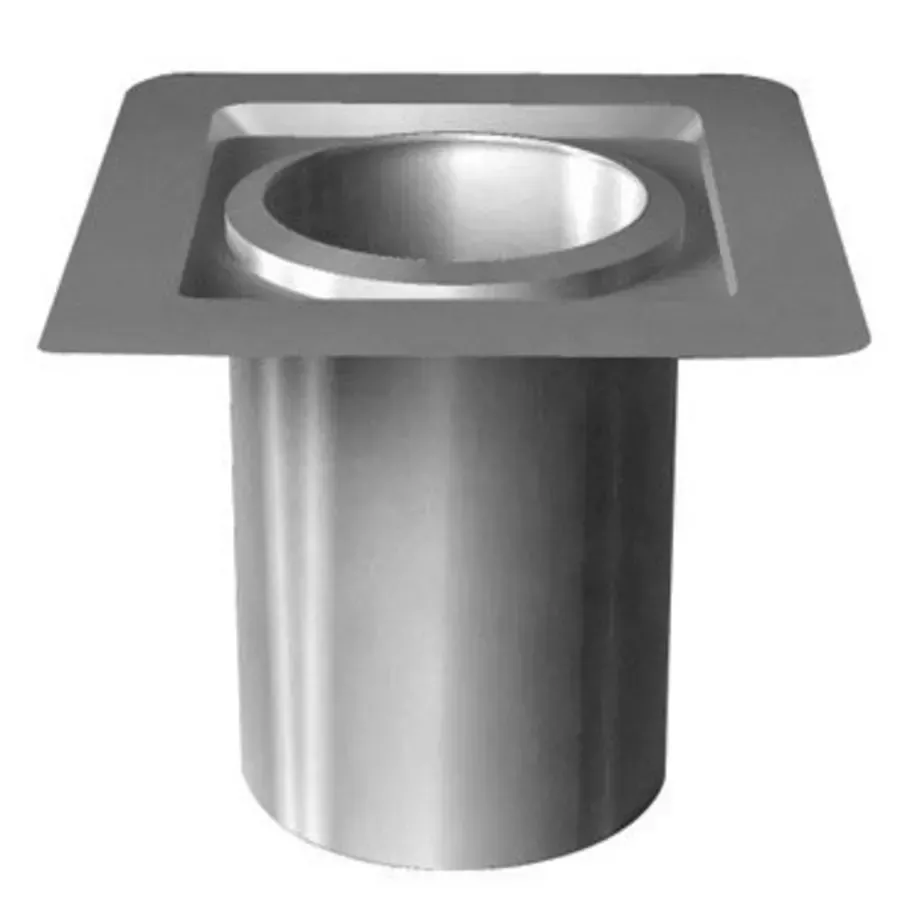

14″ Class A Chimney Pipe Firestop / Joist Shield from Sure-Temp
This piece is used in floor/ceiling penetrations other than those which include a ceiling support or attic insulation shield. This shield is not required when passing through roof.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
Materials: Stainless steel
Clearance: 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)
UL Listed: UL-103
Warranty: Lifetime Limited Warranty
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest 14 Inch SureTemp Collection
Dimensions and Measurements
| Height | 12 in. |
| Pipe Inside Diameter | 14 in. |
| Bar Length | 22 in. |
| Base Width | 20 in. |
| Outside Diameter | 18 in. |
| Inside Diameter | 16.125 in. |
Characteristics and Features
| Material | Stainless Steel |
| Configuration | Shield |
| Pipe Class | Class A |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Galva-Temp, Ultra-Temp, Sure-Temp |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
Electrical and Operational Information
| Fuel Type | Coal, Oil, Wood |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
