Metalbest 4″ Inner Diameter – Direct Vent Pipe – Double Wall – Co-Linear Termination Box with Baseplate

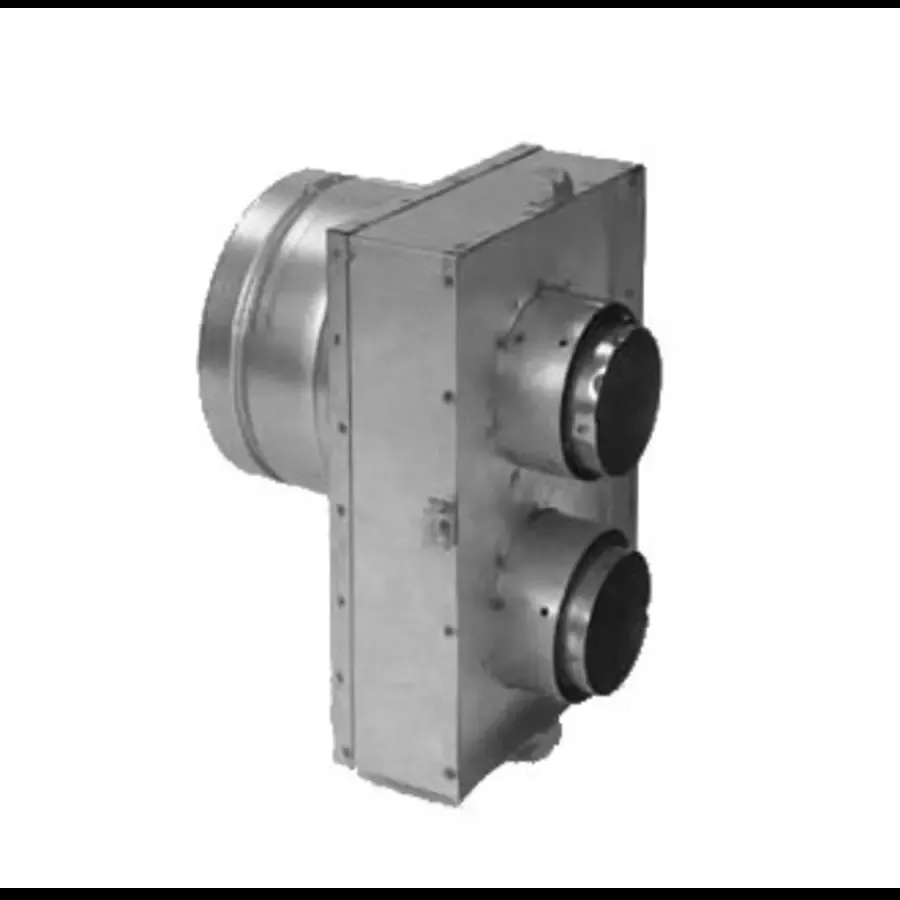

4″ x 6-5/8″ Direct Vent Co-Linear Termination Box with Baseplate from Direct-Temp

This co-linear termination box is for use with Selkirk 3″ aluminum Flexi-Liner or equivalent product. This provides an end point for the system and includes a baseplate.

Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The LockTab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.

Features:

Siliconozed fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
High efficiency performance
Connection Specifications:
Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
