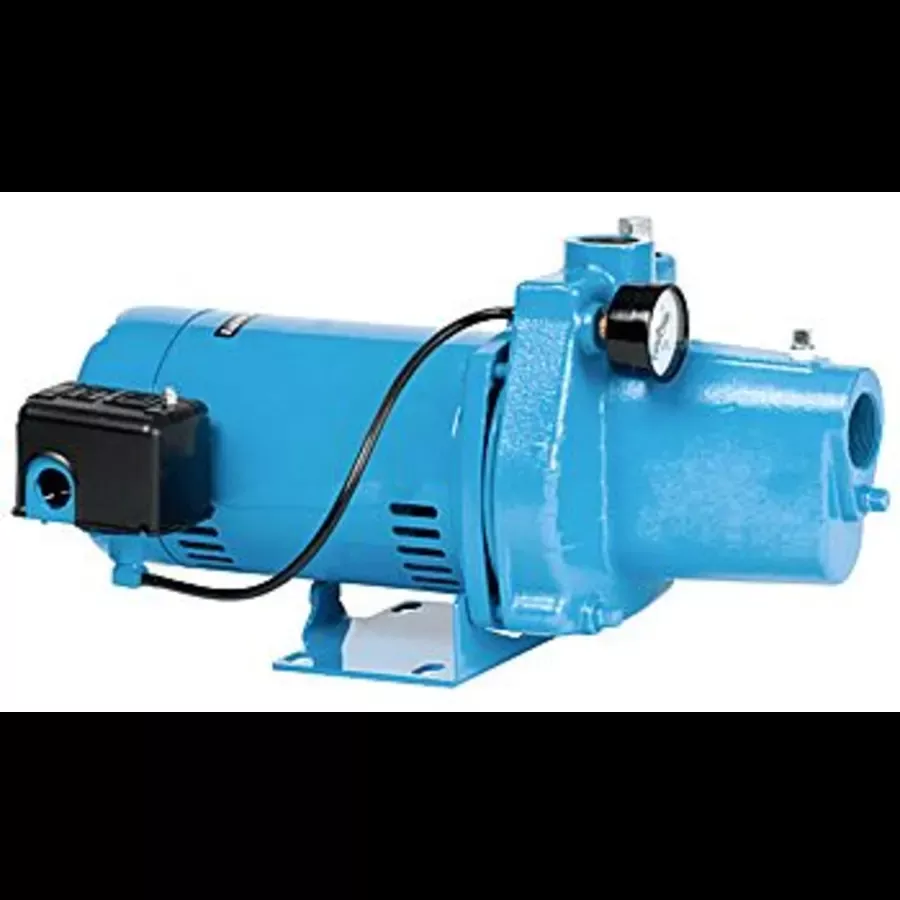

Shallow Well Jet Pump For supplying fresh water to rural homes, farms and cabins. Installs where vertical distance from pump to pumping water level does not exceed 25 feet.
Cast iron casing and seal plate for durability and long life
A.O. Smith higher than standard NEMA service factor dual compartment motor
Dual voltage 115/230V
Square D pressure switch preset at 30-50 PSI
1-1/4″ suction, 1″ NPT discharge and brass flow control valve
Pressure gage included
Stainless steel motor shaft seal and dual ball bearings
Precision engineered thermoplastic impeller, diffuser, nozzle and venturi
Clean-out plug to easily unclog nozzle
Fully serviceable with two-year warranty
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant Shallow Well Collection
Dimensions and Measurements
| Height | 9.8 in. |
| Width | 4.85 in. |
| Length | 18.9 in. |
Characteristics and Features
| Material | Brass, Stainless Steel |
Electrical and Operational Information
| Voltage | 115, 230 |
| Horsepower | 1 |
Warranty and Product Information
| CARB approved | Yes |
| Color | Blue |
| Color Tone | Neutrals |
