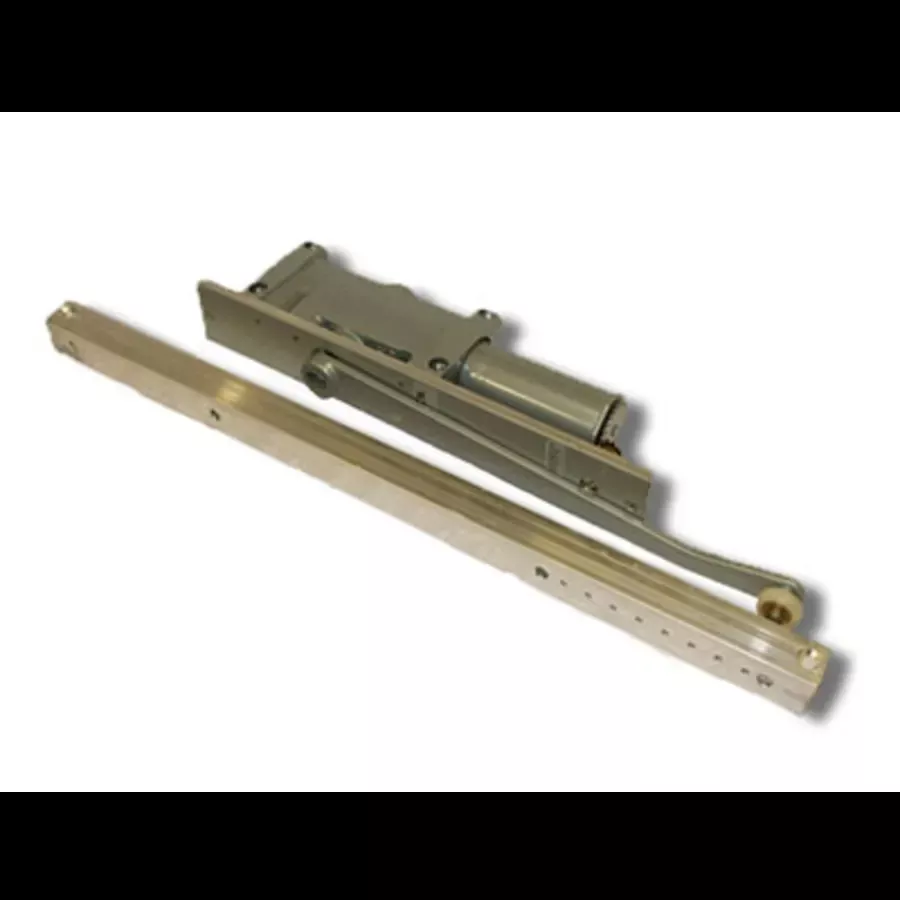

A quiet, smooth and aesthetically pleasing device, the LCN 2010 Series concealed-in-frame door closer is designed to handle heavy duty applications while remaining completely concealed. With a variety of powder coated finish options, that can have a special rust inhibitor applied for increased durability, and 4 track choices to assure this top quality product can fit your application, the 2010 series meets virtually all architectural requirements, while exceeding expectations.
Certifications: Having been tested under ANSI Standard A156.4, with a BHMA Grade 1 rating, options that meet ADA requirements, and being UL and cUL listed when the hold open function isn’t selected, the LCN 2010 Series validates that it’s up to the specifications you’re required to fill, is backed by industry standards, and has the versatility to work with a wide array of installation and application needs.
Features:
Concealed-In-Frame Mounting
Hold Open and Bumper Track Options Available
Cylinder Choices for Sizes 1, 3, 4, 5, and 6
Heavy Duty Single Arm and Roller Assembly
UL and cUL Listed for Self-Closing Doors without Open Hold Track
ANSI Standard A156.4, Grade One.
For Interior Doors up to 60″ Wide
For Exterior Doors up to 48 Inches Wide
Special Rust Inhibitor Option Available
Includes Screw Pack
For Aluminum, Hollow Metal, or Wood Doors and Frames
Specifications:
Width: 2-1/16″
Height: 3-5/8″
Length: 14″
Door Thickness: 1-3/4″
Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 2010 Collection
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | 2010 |
| Series | 2010 |
| ADA | Yes |
| Manufacturer Warranty | 10 Year |
| ANSI Certification | A156.4 |
| Certifications | ANSI, UL10C, UL |
| Usage Level | Heavy Duty |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
Dimensions and Measurements
| Height | 3.625 in. |
| Width | 2.0625 in. |
| Length | 14 in. |
| Door Thickness | 1-3/4″ |
| Projection | 2.0625 in. |
| Closer Body Length | 14 in. |
| Closer Size | 1, 3, 4, 5, 6 |
| Horizontal Mounting Holes | 13.625 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 60 in. |
| Vertical Mounting Holes | 13.625 in. |
Characteristics and Features
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Arm Type | Hold Open |
| Adjustable Backcheck | Yes |
| Adjustable Spring | No |
| Barrier Free | Yes |
| Delay Action | No |
| Hold Open | Optional |
| Mounting | In Frame |
| Operation Mode | Hydraulic |
| Shell Material | Cast Iron |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Black, Dark Bronze |
| Color Tone | Blacks, Bronze Tones, Neutrals |
