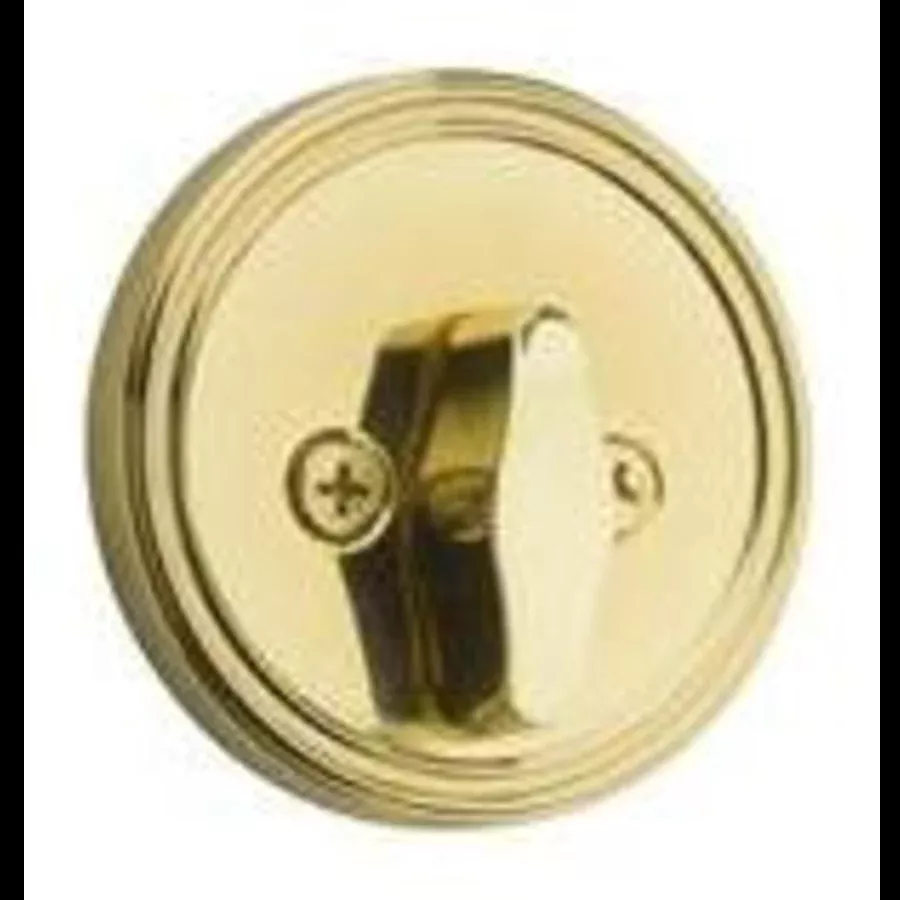

One-Sided Function: One-sided deadbolts work via thumb turn on the interior side of the door without any keying or unlatching function on the exterior. Often times they are used on panic rooms, dark rooms, or back doors where exterior/keyed entry is not required when occupied, but can be installed anywhere that additional secured privacy is needed.
Features:
Meets ANSI A156.5/BHMA Grade 3 standards
All metal construction for durability
Installs easily into standard prep doors
Includes a round corner latch faceplate and adjustable latch
25 year mechanical and 5 year finish warranty
Complies with standards of the Americans with Disabilities Act (ADA)
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Diameter: 2-9/16″
Projection: 3/4″
Product Weight: 0.61 lbs
Latch Faceplate: Round Corner
Product Variations:
SD9100: Single Cylinder Deadbolt
SD9102: UL Listed Single Cylinder Deadbolt
SD9200: Double Cylinder Deadbolt
SD9300 (This Model): One Sided Deadbolt
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Safe Lock by Kwikset Collection
Dimensions and Measurements
| Height | 2.5625 in. |
| Product Weight | .61 lbs. |
| Width | 2.5625 in. |
| Projection | .75 in. |
| Door Thickness | 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″ |
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Edge Bore | 1″ |
Characteristics and Features
| Material | Zinc |
| Thermostat | Traditional |
| Concealed Screws | No |
| Handshower | Left, Reversible, Right |
| Panic Proof | No |
| Latch Faceplate | Round Corner |
| Locking Mechanism | Thumbturn |
Warranty and Product Information
| Approved for Commercial Use | No |
| Manufacturer Warranty | 25 Year Mechanical, 5 Year Finish |
| Series | Safe Lock by Kwikset |
| Certifications | ANSI |
| BHMA Certification | Grade 3 |
| Fire Rated | No |
| ANSI Certification | A156.5 |
| Color | Bright Brass, Satin Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
