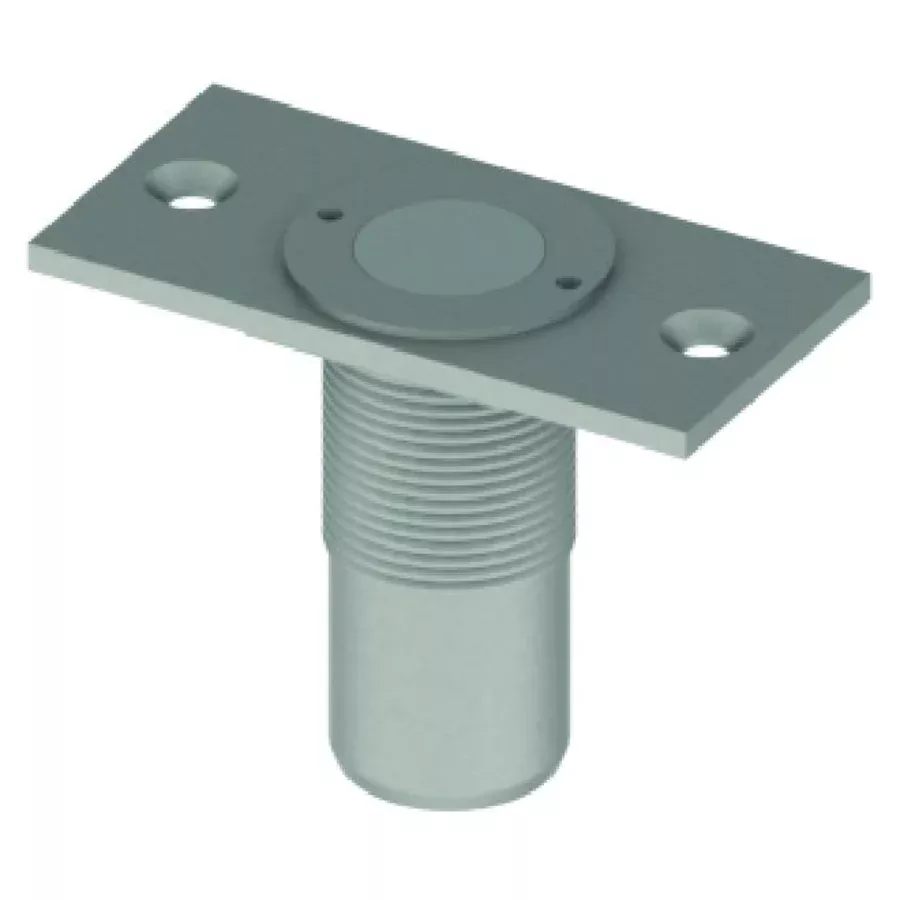

Features:
Meets standards for ANSI 156.16 for L04021
Constructed of solid brass for durability and resistance to corrosion
Features a spring loaded plunger to prevent clogging by dust and particles
Can be used without face plate for carpet and threshold applications
Packaged unassembled with one (1) strike, one (1) plate, two (2) 8 x 1″ FPHWS, two (2) plastic anchors, and one (1) spanner wrench
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
Face Plate Length: 2-29/32″ (73.8 mm)
Face Plate Width: 1-7/16″ (36.5 mm)
Face Plate Depth: 1/8″ (3.2 mm)
Center to Center: 2-1/4″ (57.2 mm)
Barrel Diameter: 1″ (25.4 mm)
Plunger Diameter: 3/4″ (18.8 mm)
Projection: 2-5/16″ (58.7 mm)
Additional Hager Links
View the Manufacturer Warranty
Browse all Hager Products
Dimensions and Measurements
| Width | 1.437 in. |
| Length | 2.9055 in. |
| Depth | .126 in. |
| Diameter | .75 in. |
| Projection | 2.311 in. |
| Length mm | 73.8 mm |
| Projection mm | 58.7 mm |
| Width mm | 36.5 mm |
| Diameter mm | 18.8 mm |
| Bottom Strike Length | 2.311 in. |
| Bottom Strike Width | .75 in. |
| Depth mm | 3.2 mm |
Characteristics and Features
| Material | Brass |
Included Components
| Installation Hardware Included | Yes |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ANSI Certification | A156.16 |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
