About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

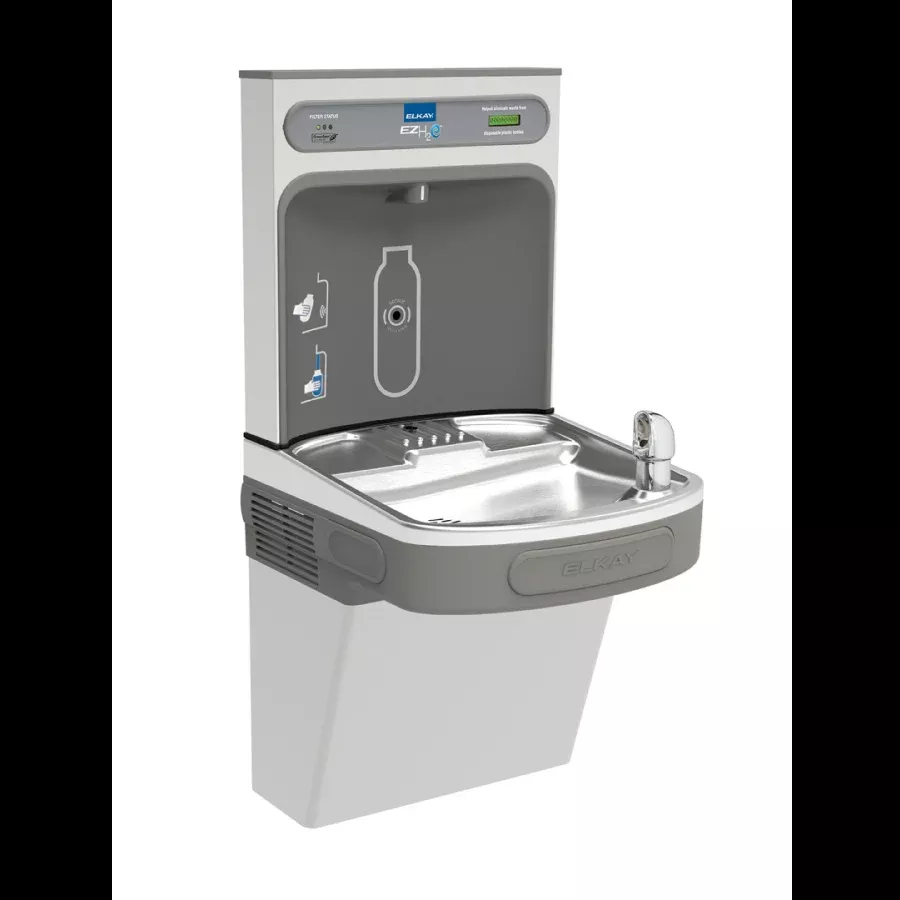

Elkay LZSDWSVRSK Features:
Single non-refrigerated drinking fountain and bottle filler in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Easy-Touch push-bar controls on front, left and right sides
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Vandal-Resistant bubbler is a heavy-duty chrome plated construction
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Secure mounting frame assembly included
Elkay LZSDWSVRSK Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to replace. Upon replacement, the filter monitor is automatically reset.
Energy Efficiency
Bottle fillers can be scheduled to turn off the refrigeration during times of non-use to save on energy costs while continuing to dispense ambient water.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZSDWSVRSK Specifications:
Height: 39-1/16″ (measured from lowest rim to top rim of fixture)
Length: 18-3/8″ (measured from most left to most right rim of fixture)
Width: 19″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.5
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Filter: No
Number of Stations: 1
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Location Rating | Dry Location |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| ASSE Code | A112.19.3 |
| Outdoor Approved | No |
| Made in America | Yes |
Dimensions and Measurements
| Height | 39.4375 in. |
| Width | 19 in. |
| Product Weight | 45 lbs. |
| Length | 18.375 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
Characteristics and Features
| Material | ABS, Stainless Steel |
| Insulation Type | Wall Mounted |
| Filtered | Yes |
| Freeze Resistant | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Energy Efficient | Yes |
| Vandal Resistant | Yes |
| Control Type | Bar |
| Antimicrobial | Yes |
| Bi-Level | No |
| Hands Free | Yes |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 15 |
| Amperage | 1 |
| Frequency | 60 Hertz |
Included Components
| Bottle Filler Included | Yes |
| Cooling Unit | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
