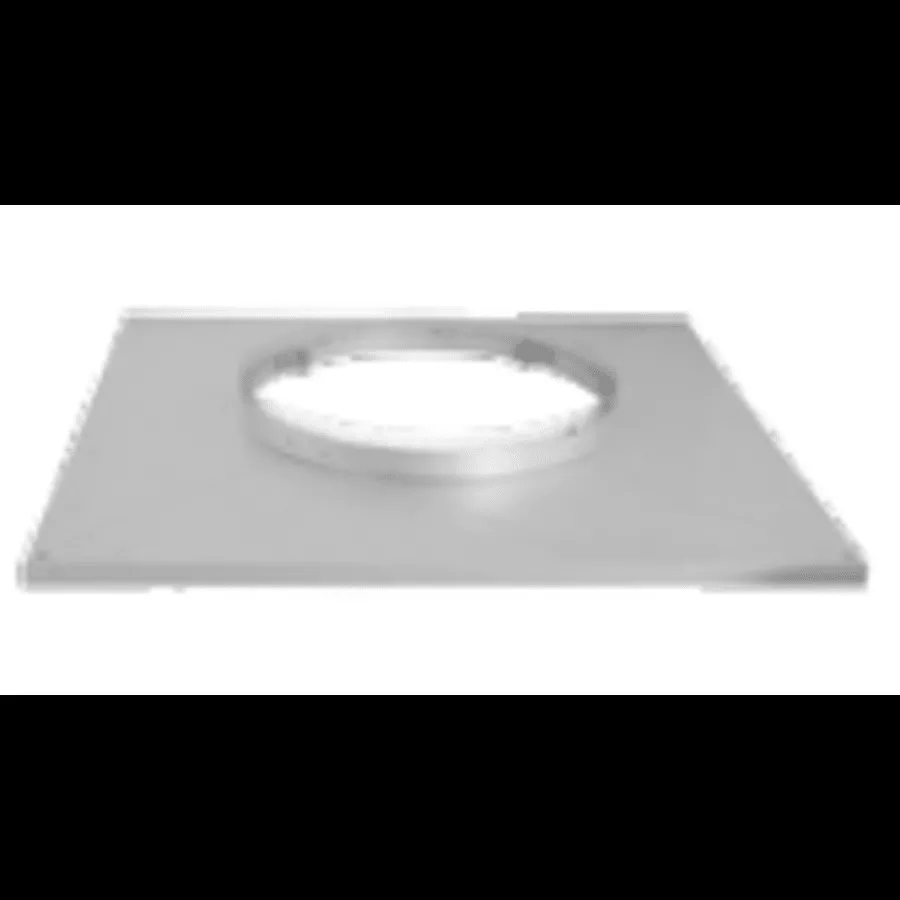

DuraChimney II Collection 16″ Class A Chimney Pipe Chase Top Flashing
The DuraChimney II 16″ Class A Chimney Pipe Chase Top Flashing is a component that is used in a typical venting installation. The DuraChimney II chase top flashing encloses the top of a chase while providing a ventilation air passage to the chase. Includes spacer clips.
Features:
Inner Diameter: 16″
Dimensions: 40″ x 40″
Includes Spacer Clips
UL Listed
DuraChimney II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design which eliminatesthe need for field assembly of pipe sections, allowing for faster installation. DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside and to provide a fire-safe design that protects both the chimney and the building. The double-wall, air-cooled design allows the chimney to expand both radially and lengthwise under high temperatures.
Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting.The company’s research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.
Additional DuraVent Links
View the Manufacturer Warranty
Browse all DuraVent Products
DuraVent 16 Inch DuraChimney II Collection
Dimensions and Measurements
| Depth | 40 in. |
| Width | 40 in. |
| Product Weight | 2 lbs. |
| Inner Pipe Gauge | 27 |
| Outer Pipe Gauge | 26 |
| Pipe Inside Diameter | 16 in. |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | DuraChimney II |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Application | Masonry Fireplace |
| UL Listing Number | UL 103, ULC S604 |
Characteristics and Features
| Configuration | Flashing |
| Inner Pipe Material | Stainless Steel |
| Insulation Type | Air |
| Outer Pipe Material | Galvanized Steel |
| Pipe Class | Class A |
| Pipe Shape | Round |
Electrical and Operational Information
| Fuel Type | All Fuel, Coal, Gas, Oil, Wood |
| Color | Galvanized Steel |
| Color Tone | Steel Tones |
