Product Overview
Dimplex 40-inch Optimyst Pro 1000 Built-in Electric Firebox with Heat
Dimplex Optimyst® Pro 1000 Built-In Electric Firebox: X-GBF1000-PRO – – (includes CDFI-BX1000 Firebox, (2x) CDFI500-PRO Cassettes, FG1000 Front Glass)

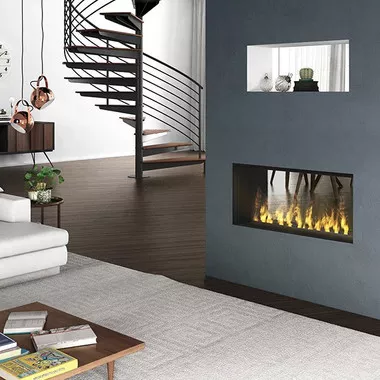

Easily turn fireplace design concepts into reality with the Dimplex Optimyst Pro 1000 Built-in Electric Firebox. Install it as a single-sided unit, or remove the included backer panel and convert to a see-through design that opens the view between rooms. The discrete heater completes the functionality and ensures perfect comfort in addition to the dazzling Optimyst flame and smoke effect.
- The Optimyst flame effect uses revolutionary ultrasonic technology to produce a fine mist that creates the lifelike illusion of flames and smoke.
- Have some fun and change up your customizable flame width by adding the included spacers and slots to your Optimyst cassette.
- This unit is capable of showcasing double sided viewing areas with the included removable high-gloss backer panel for easy conversion. To complete the transition you will need to purchase the rear glass pane sold separately (GBF1000-GLASS).
- Can be used as a supplemental heat source. It includes an effective fan-forced heater that will warm up to 400 sq. ft.; the heater heats one side, even with the backer panel removed.
Feature
- Opti-myst® Flame Effect – Revolutionary ultrasonic technology produces a fine mist to create the illusion of flames and smoke.
- Customizable Flame Width – Includes spacers and slots for customizable flame width and pattern.
- Single or Double-sided – Includes removable hi-gloss/reflective backer panel for easy conversion.
- Adjustable Flame Intensity – Control the desired volume of flame.
- Supplemental Heat – Includes an effective fan-forced heater to warm up to 400 sq. ft.; Heater heats one side, even with backer panel removed.
- Crackling Sound Effects – Enjoy a more complete sensory experience with the sound of natural wood fire.
- Frame, Wire and Finish – Basic installation requires fewer tradespeople, no gas lines, venting or chimney.
- Zero Emissions – The most sustainable fireplace option; no emissions and 100% efficient.
- Energy Efficient – Uses low-energy LED lights for low-cost operation.
- Sight and Sound Remote – Control the flames, heater and sound at the touch of a button.
Key Technical Specifications
Wattage: 1460W
Voltage: 120V
BTU: 4981
Product Depth/Length (in): 16.25
Product Height (in): 31.75Product Width(in): 46.63
Product Weight (lb):
Product Depth/Length (cm): 41.28
Remote Control: Yes
Automatic Shut-Off: Yes
Power: Source Electric
Warranty: 2 Yr
Dimensions
Documentation
Owners Manual – DX-OPTIMYST-04 – X-GBF1000-PRO
GBF1000-PRO_Service_Manual_1.pdf
GBF1000-PRO_Owners_Manual_1.pdf
GBF1000-PRO_Sell_Sheets_1.pdf
