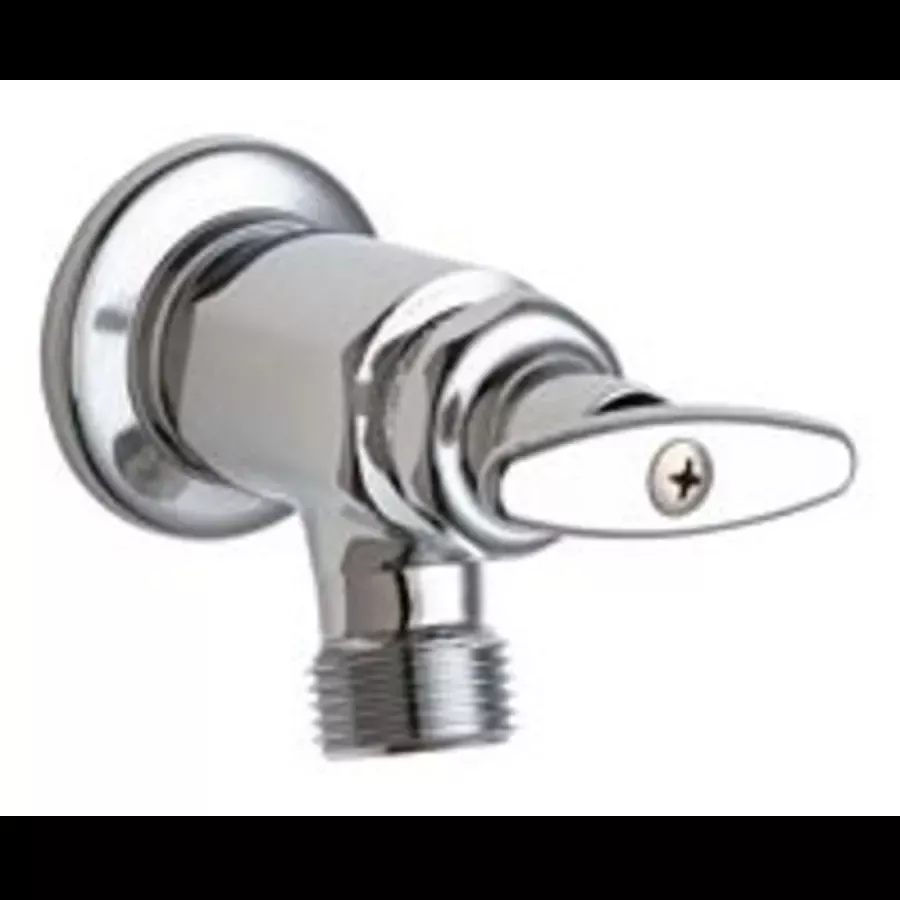

Wall Mounted Inside Sill Faucet with Tee Handle
Product Feature:
Solid brass body construction
2 1/4″ tee handle, catalog 293-6
Slow compression renewable cartridge that closes with water pressure with tapered square broach to facilitate handle removal, catalog 217-XTLH
1/2″ NPT female inlet
3/4″ male garden hose thread outlet
Loose wall flange
Performance Specification:
Rated Operating Pressure: 20-125 PSI
Rated Operating Temperature: 40-140° F
Warranty:
Lifetime Limited Faucet Warranty
5-Year Limited Cartridge Warranty
1-Year Limited Finish Warranty
Compliant To:
ASME A112.18.1M
CSA B125
Additional Chicago Faucets Links
View the Manufacturer Warranty
Browse all Chicago Faucets Products
Chicago Faucets Manual Collection
Dimensions and Measurements
| Depth | 3.75 in. |
| Spout Reach | 1.75 in. |
| Outside Diameter | 0.75 in. |
| Water Pressure (Max) | 125 PSI |
| Water Pressure (Min) | 20 PSI |
Characteristics and Features
| Material | Brass |
| Valve Type | Slow Compression |
| Faucet Holes | 1 |
| Insulation Type | Wall Mounted |
| Handle Style | Cross |
| Number Of Handles | 1 |
| Pullout Spray | No |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | ASME, CSA |
| Low Lead Compliant | No |
| CSA Code | B125 |
| ASSE Code | A112.18.1M |
Included Components
| Handshower Included | Yes |
| Valve Included | Yes |
| Escutcheon Included | No |
| Sidespray | No |
| Soap Dispenser Included | No |
| Flange | Yes |
| Color | Chrome |
| Color Tone | Silver Tones |
