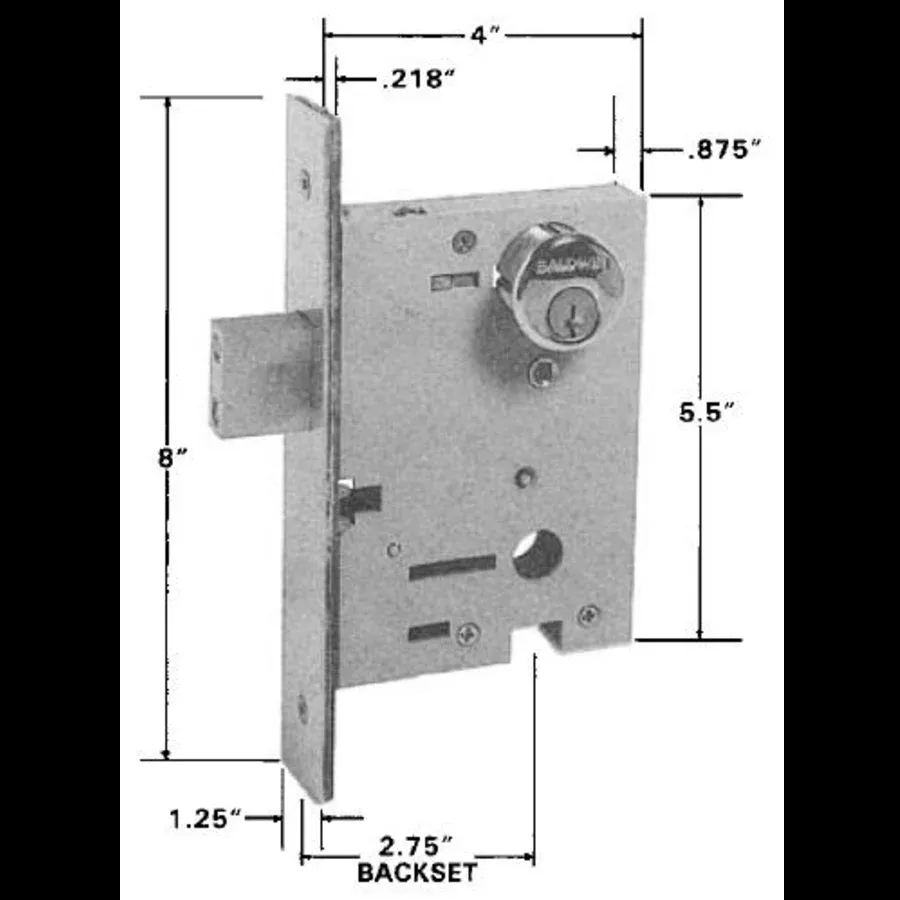

Turn Piece / Cylinder Mortise Deadlock
2-3/4″ Backset
Steel Case: 0.875″ x 4″ x 5.5″
Heavy gauge steel case with solid forged brass working parts
Completely reversible for all door conditions
Deadbolt:
0.5″ x 1.25″ x 1″ throw with two saw-proof inserts.
Strike:
Heavy gauge brass finished to match. Furnished with two 3″ steel screws and a dust box standard (8530.000)
Cylinder:
Standard mortise type not included – must be purchased separately
Packed:
One in a box. 8300 Cylinder Collar, 8530.000 Dust Box, and fasteners.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Mortise Lock Collection
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Estate |
| Series | Mortise Lock |
Dimensions and Measurements
| Backset | 2-3/4″ |
| Color | Aged Brass, Antique Nickel, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
