Single Cylinder Mortise Deadlock
Single cylinder with 1-1/2″ backset

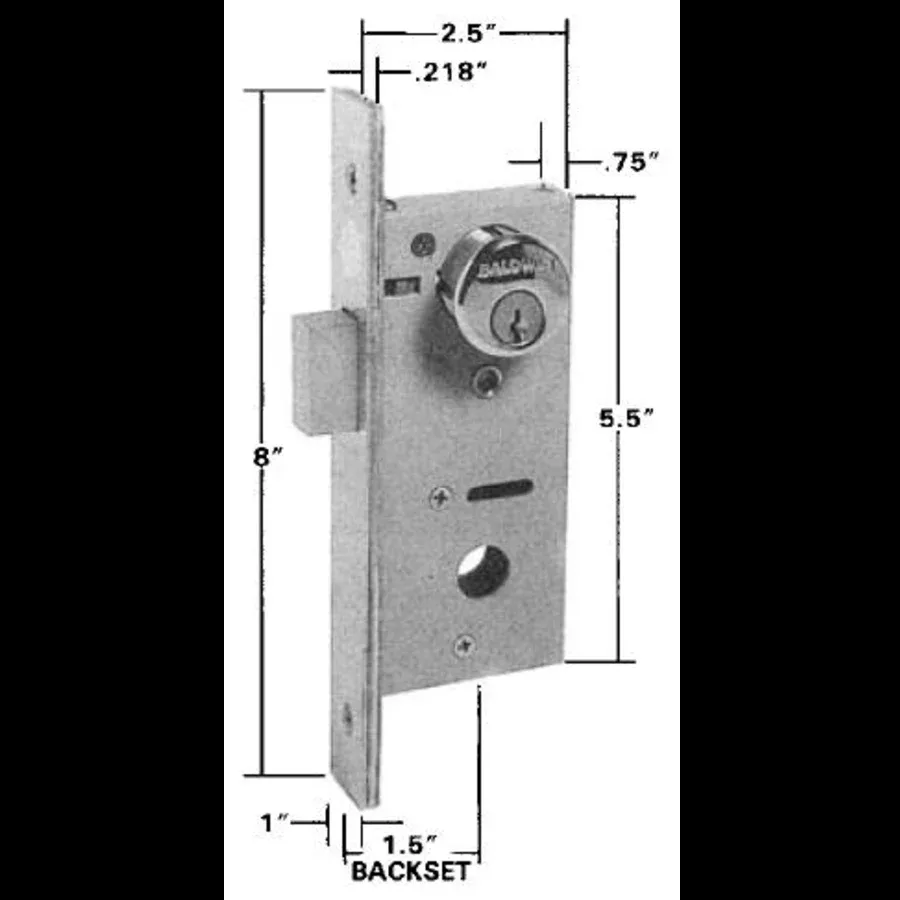

Steel Case: 0.75″ x 2.5″ x 5.5″
Front: 0.218″ x 1″ x 8″
Heavy gauge steel case with solid forged brass working parts
Completely reversible for all door conditions
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Deadbolt:
0.5″ x 1.25″ x 1″ throw with two saw-proof inserts.
Strike:
Heavy gauge brass finished to match. Furnished with two 3″ steel screws and a dust box standard (8530.000)
Cylinder:
Standard mortise type not included – must be purchased separately
Packed:
One in a box. 8300 Cylinder Collar, 8530.000 Dust Box, and fasteners.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Mortise Lock Collection
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Estate |
| Series | Mortise Lock |
Dimensions and Measurements
| Backset | 1-1/2″ |
Characteristics and Features
| Function | Keyed Entry |
| Cylinder Type | Single Cylinder |
| Color | Aged Brass, Antique Nickel, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Nickel, Matte Antique Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
