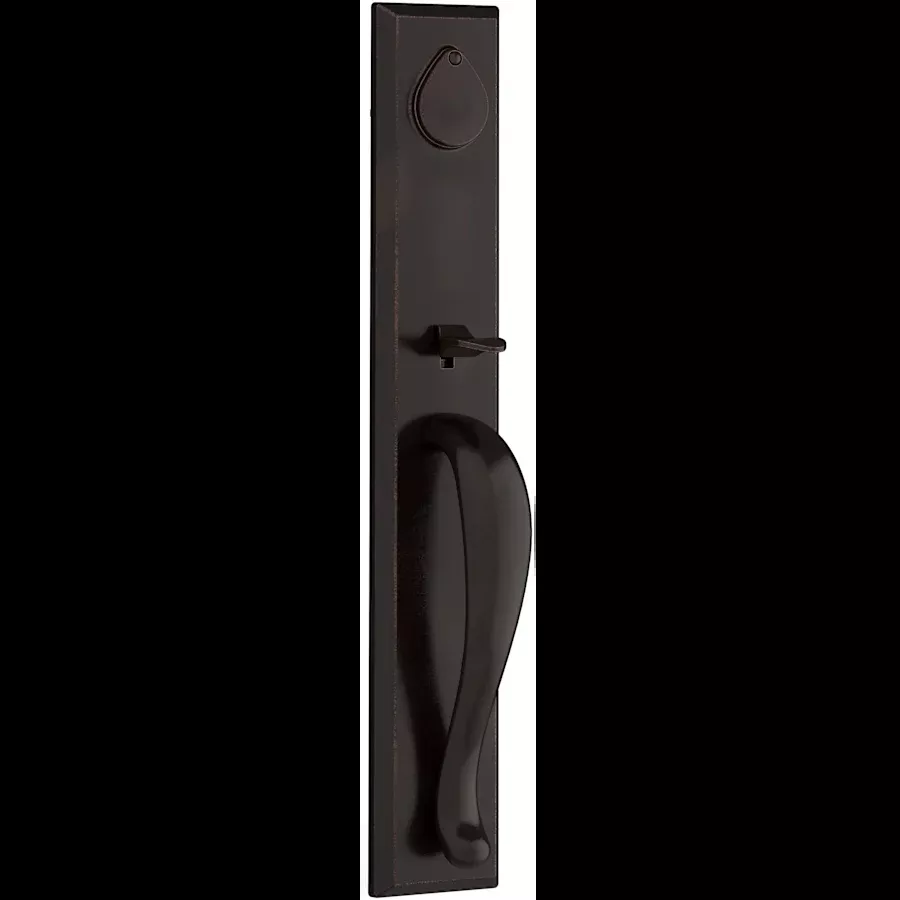

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
BHMA grade 2 certified security
Constructed of solid brass for strength and durability
Installs easily with all necessary mounting hardware included
Covered by a limited lifetime warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2″
Handing: Reversible Left or Right
Latch Faceplate: Square Corner
Cylinder: SmartKey 5 Pin KW1
Mounting Center to Center: 5-1/2″
Overall Height: 18-1/2″
Trim Height: 18-1/2″
Trim Width: 2-15/16″
Interior Handle Height: 2-3/8″
Interior Handle Width: 2-3/8″
Interior Handle Projection: 2-1/4″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Longview Collection
Characteristics and Features
| Material | Brass |
| Thermostat | Traditional |
| Handle Style | Grip |
| Solid Construction | Solid Brass |
| Handshower | Left, Reversible, Right |
| Mounting | Full Plate |
| Cylinder Type | Single Cylinder |
| Latch Faceplate | Square Corner |
| Function | Keyed Entry |
| Handle Material | Metal |
| Interconnected | Yes |
| Lock Style | Single Point |
| Panic Proof | Yes |
| Cylinder | SmartKey 5 Pin |
| Keyway | KW1 |
| Adjustable Throughbolt | No |
| Interior Handle Style | Knob |
| Handle Design | Longview |
| Trim Design | Square Bevel |
Warranty and Product Information
| ADA | No |
| Certifications | UL |
| Collection | Reserve |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 2 |
Dimensions and Measurements
| Center to Center | 5.5 in. |
| Product Weight | 10.55 lbs. |
| Door Thickness | 1-3/4″, 1-7/8″, 2″ |
| Backset | 2-3/4″, 2-3/8″, Adjustable 2-3/8″ or 2-3/4″ |
| Cross Bore | 2-1/8″ |
| Edge Bore | 1″ |
| Trim Height | 18.5 in. |
| Trim Width | 2.9375 in. |
| Interior Handle Projection | 2.219 in. |
| Interior Trim Height | 9.594 in. |
| Interior Trim Width | 2.875 in. |
| Overflow Height | 18.5 in. |
| Interior Handle Height | 2.344 in. |
| Interior Handle Width | 2.344 in. |
Included Components
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Dark Bronze |
| Color Tone | Bronze Tones |
