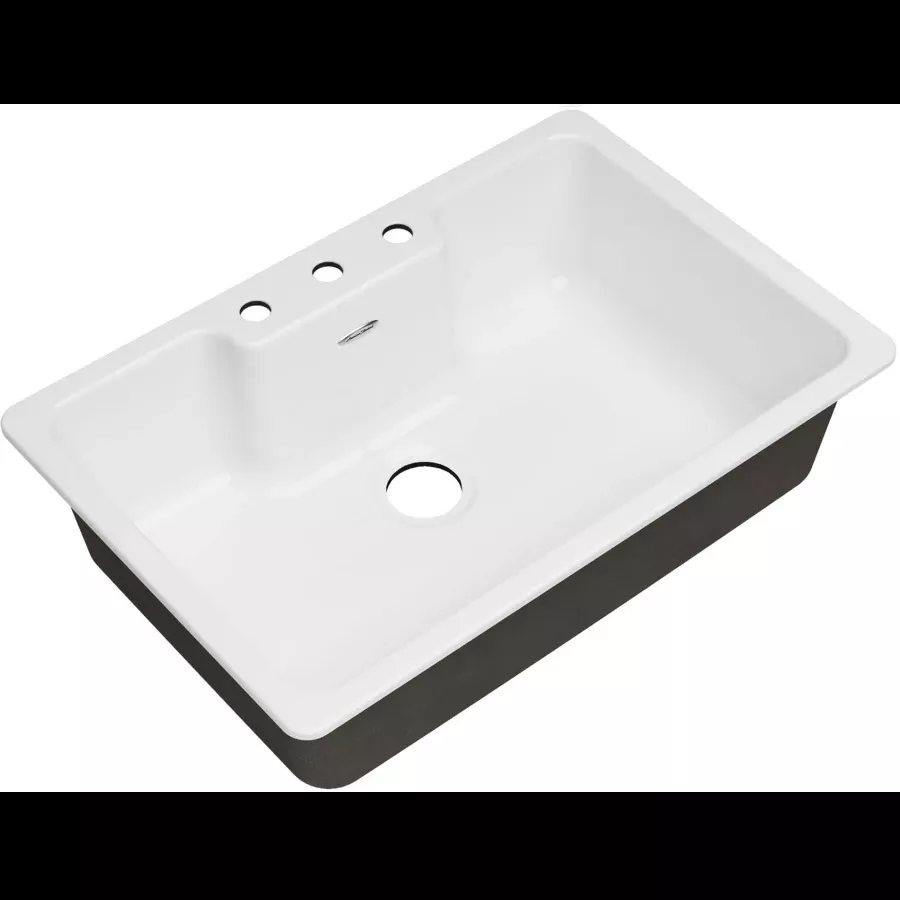

Whether you are updating your existing sink or creating your dream kitchen, the Quince single bowl cast iron sink from American Standard is the perfect combination of rustic charm and modern convenience. This 33″, large basin sink features a thick, smooth and glossy enamel finish that is nonporous, easy to clean, and resistant to stains, chips, and cracks. Crafted from durable cast iron, the Quince single bowl cast iron sink retains heat for effective soaking and dish washing.
American Standard 77SB.33223 Features:
Cast iron single bowl sink
3 Hole faucet installation
9-3/8″ Deep basin with rear drain
Drop-in installation
36″ Cabinet required for installation
Covered under American Standard’s limited lifetime warranty
American Standard 77SB.33223 Specifications:
Sink Length: 33″ (from left to right)
Sink Width: 22-3/16″ (from front to back)
Sink Height: 9-3/8″ (from top to bottom)
Basin Dimensions: 30-1/4″ L x 19-5/16″ W
Faucet Holes: 3
Faucet Centers: 8″ (distance between the installation holes for the faucet handles)
Minimum Cabinet Size: 36″
Drain Connection: 3-9/16″
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Quince Collection
Dimensions and Measurements
| Width | 22.1875 in. |
| Height | 9.375 in. |
| Nominal Width | 23 in. |
| Faucet Centers | 8 in. |
| Faucet Hole Size | 1.375 in. |
| Drain Connection | 3.5625 in. |
| Length | 33 in. |
| Bar Length | 30.25 in. |
| Base Width | 19.3125 in. |
| Nominal Length | 33 in. |
| Minimum Cabinet Size | 36 in. |
Characteristics and Features
| Thermostat | Transitional |
| Material | Cast Iron |
| Faucet Holes | 3 |
| Insulation Type | Drop In |
| Apron Front | No |
| Drain Placement | Rear |
| Farmhouse | No |
| Number Of Bathers | 1 |
| Sink Shape | Rectangular |
| Faucet Installation Type | Deck Mounted |
| Corner Sink | No |
Warranty and Product Information
| Collection | Quince |
| Certifications | ASME, CSA |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.1 |
| CSA Code | B45.2 |
Included Components
| Soap Dispenser Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Faucet Included | No |
| Drainboard | No |
| Color | Brilliant White |
| Color Tone | Whites |
